Aluminium Louvre Windows

Explore the Range

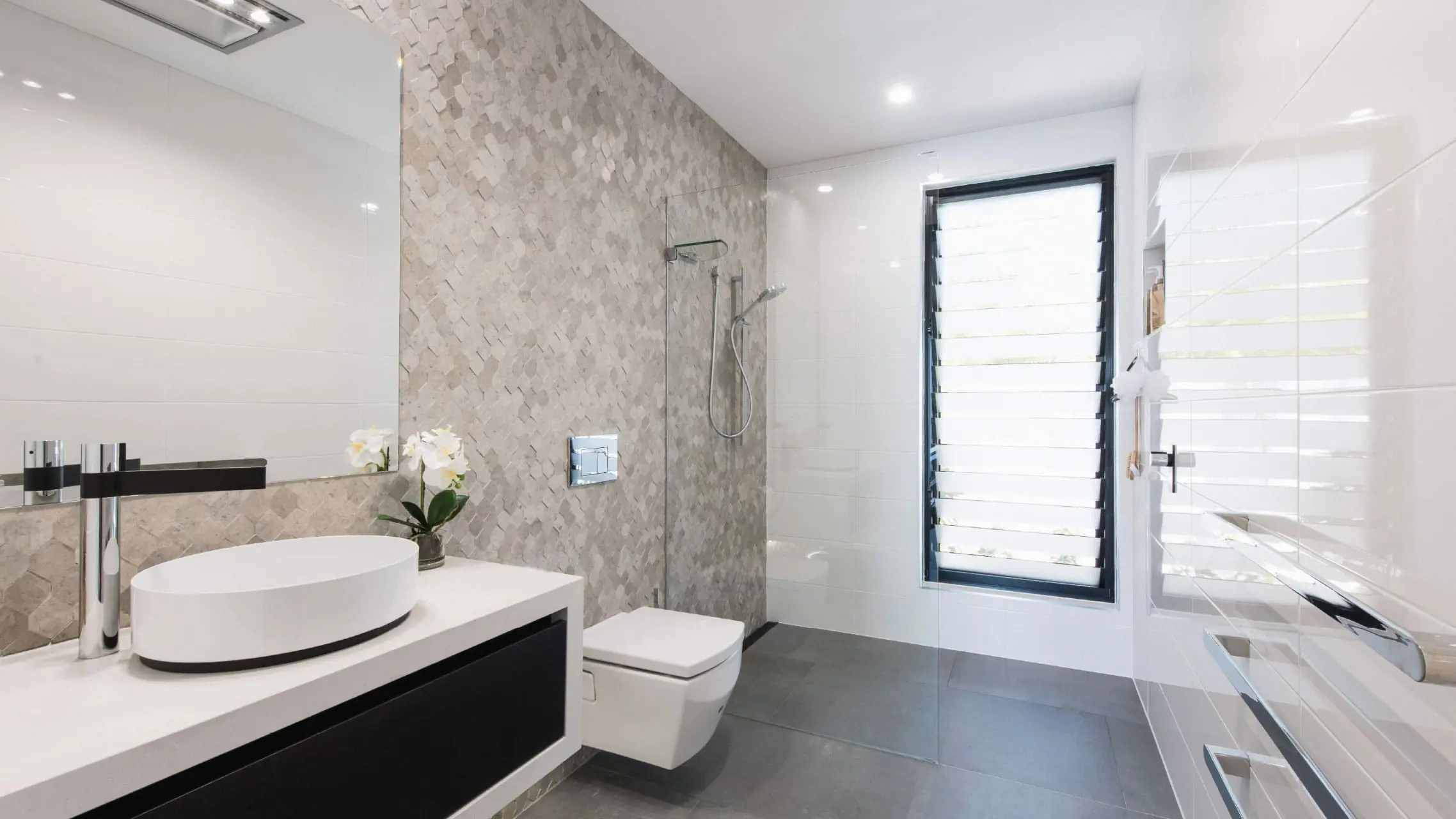

When it comes to enjoying a breath of fresh air, our louvre windows have got your back. They consist of a series of horizontal blades made from glass, timber, or aluminium fixed between the frame. You can open and close the blades by moving a small lever up and down. For extra protection against unwanted visitors, our louvres can be locked in position and combined with insect or security screens.

Signature

Screenable

Key lockable handle for extra security

Can be keyed alike with other Aura products

Architectural symmetry with other Aura products

Double glazing options

Ventilation

Water Resistance

Energy Efficiency

Noise Reduction

Maximum Bushfire Rating

BAL-40

Compliant with Australian Standards

Frame Size

125mm

Maximum Water Rating

300Pa

Maximum Wind Rating

4500Pa ULS

Maximum Product Height

3000mm

Maximum Product Width

5430mm

Maximum Panel Width

1000mm

Maximum Panel Weight

N/A

Maximum Glass Thickness (single glazed)

6mm

Maximum Glass Thickness (double glazed)

N/A

Lowest U-value (single glazed)

4.3

Lowest U-value (double glazed)

N/A

Maximum Acoustic Rating

Rw25

Frame Colours

Standard Colours

Textura® Black (GN305A)

Textura® Monument (GL329A)

Textura® Woodland Grey (GL333A)

Textura® Dune (GL325A)

Textura® Silver (GL205A)

Textura® Surfmist (GA336A)

Textura® White (GA330A)

Decorative Colours

Textura® Basalt (GP316A)

Textura® Deep Ocean (GJ301A)

White Birch Gloss (GA057A)

Primrose Gloss (GD037A)

Stone Beige Matt (GD247A)

Shale Grey Matt (GL284A)

Hammersley Brown Satin (GM100A)

Glass Options

Clear

Grey

Green

Blue

Satinlite

Acid Etched

Other glass options are available.

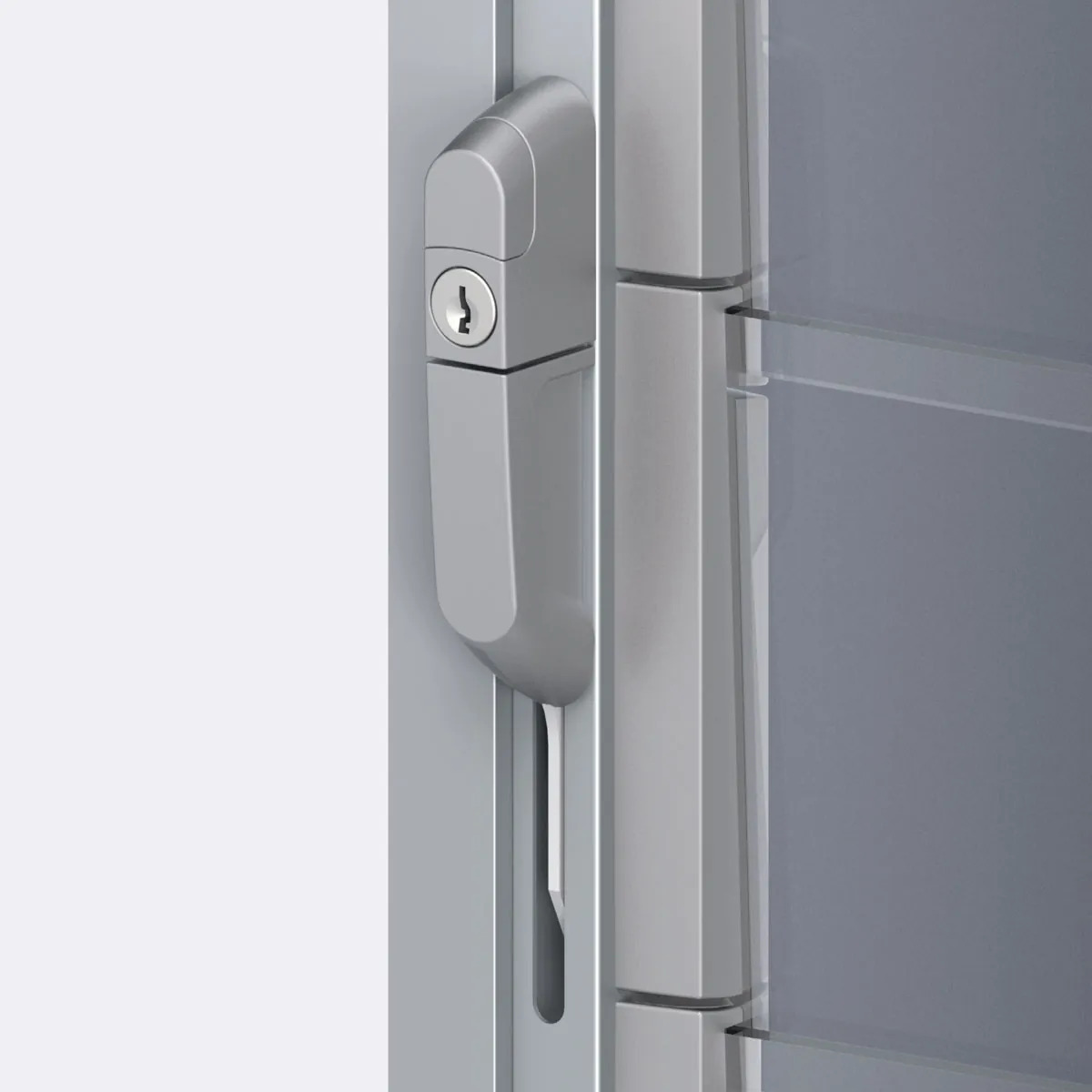

Handle Options

Standard Handle

Louvre window handles are available in standard (black) and decorative colours. Key locking optional.

Lourvre Blades

Western Red Cedar

Bush Cherry

Textura Black

Black

Monument

White

Other aluminium finishes are available.

Features

Standard Features

Ergonomic and easy-to-use handle
Wide openings invite fresh air into your home

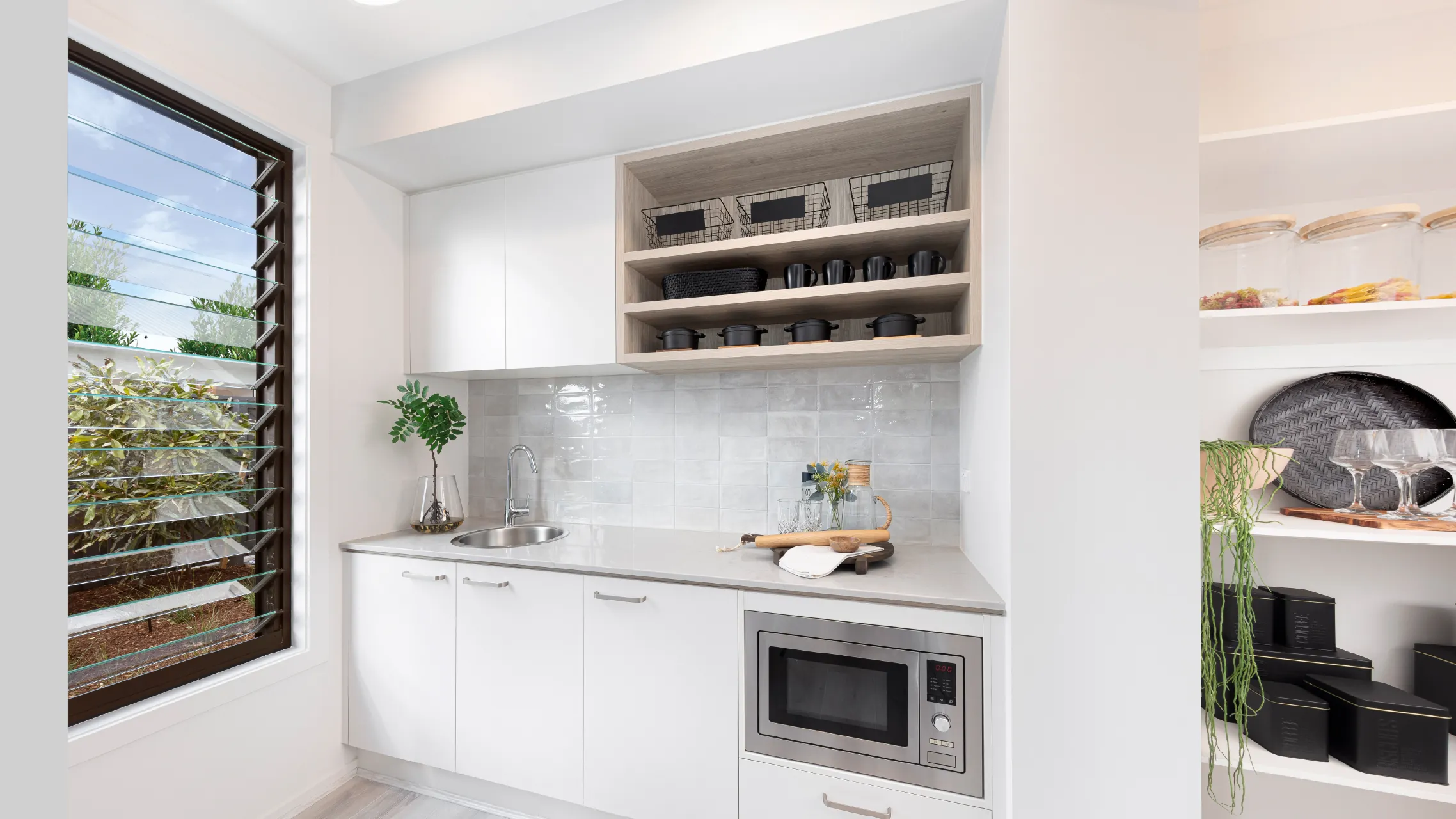

Can be used as a kitchen splashback to bring in more light and ventilation
Combine with fixed windows to create a feature wall
Ideal for secure ventilation when installed above doors (doors can be locked while louvres are left open)
Blades are available in different heights, materials and colours
High-quality seals provide superior protection agains the elements
Architectural symmetry with other Aura windows and doors
Fully compliant with relevant Australian Standards

Optional Features

Wide range of screening solutions are available
Keys can be ‘keyed alike’ with doors for convenience¹
Ring handle and map rod for opening louvres that are out of arm’s reach
Openings can be restricted for upper storey windows
Can be upgraded to suit cyclonic regions
Bushfire rated – can be certified up to BAL 40

Configurations & Sizes

Standard

L

LL

LLL

Designer

LF

LFL

LLF

LLLL

LFFL

Other designer configurations available.

View Sizes PDF

Terms & Conditions

Product availability, pricing, features, options, sizes, configurations and performance are subject to regional variations, design requirements, and building codes. Images are for illustration purposes only and may not accurately represent the product. Aura Windows & Doors reserves the right to change, alter or delete any aspect of this product without notice. We recommend visiting the Aura showroom before ordering to view colour swatches, glass samples and actual products.

¹excludes patio bolts and commercial hinged & pivot doors
