Aluminium Double Hung Windows

Explore the Range

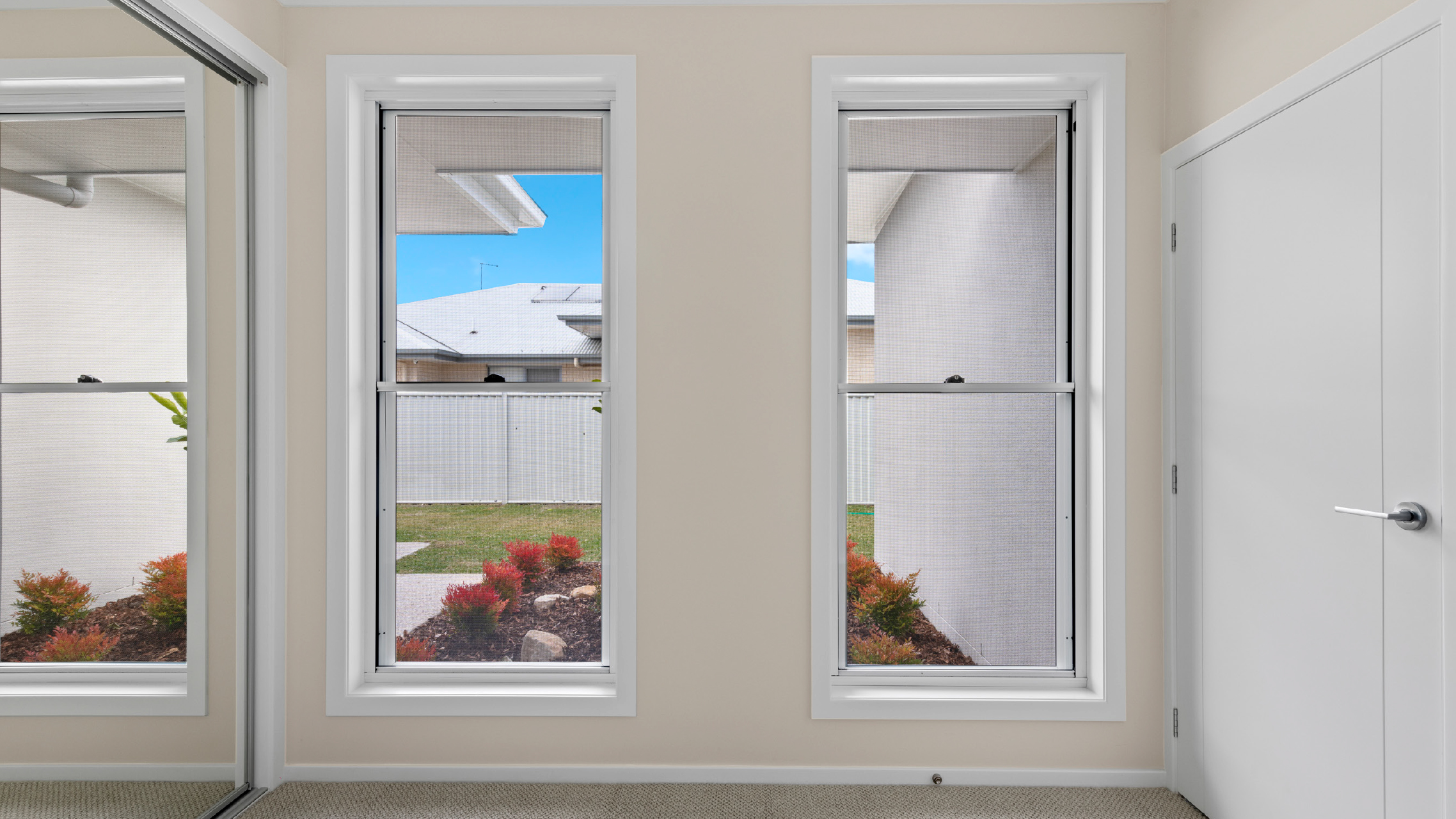

Double hung windows or sash windows allow you to enjoy the benefits of natural light and breeze, including areas with limited opening spaces. The sashes remain inside the frame, so they don’t protrude when open. They typically feature two panels which can slide up and down in the frame.

Essential

If opening space or pedestrian safety is a concern, you can’t look past our ‘Essential‘ double hung windows. Our double hung sash windows have easily-adjustable top and bottom hung sashes, giving you complete control over their position at any time. They are available in different configurations and can be installed in various contexts and spaces.

Screenable
Key lockable handle for extra security
Can be keyed alike with other Aura products
Architectural symmetry with other Aura products
Double glazing options
Ventilation
Water Resistance
Energy Efficiency
Noise Reduction
Maximum Bushfire Rating
BAL-40
Compliant with Australian Standards
Frame Size
52mm
Maximum Water Rating
450Pa
Maximum Wind Rating
4500Pa ULS
Maximum Product Height
2100mm
Maximum Product Width
3010mm
Maximum Panel Width
900mm
Maximum Panel Weight
22kg
Maximum Glass Thickness (single glazed)
6.76mm
Maximum Glass Thickness (double glazed)
N/A
Lowest U-value (single glazed)
4.3
Lowest U-value (double glazed)
N/A
Maximum Acoustic Rating
Rw32

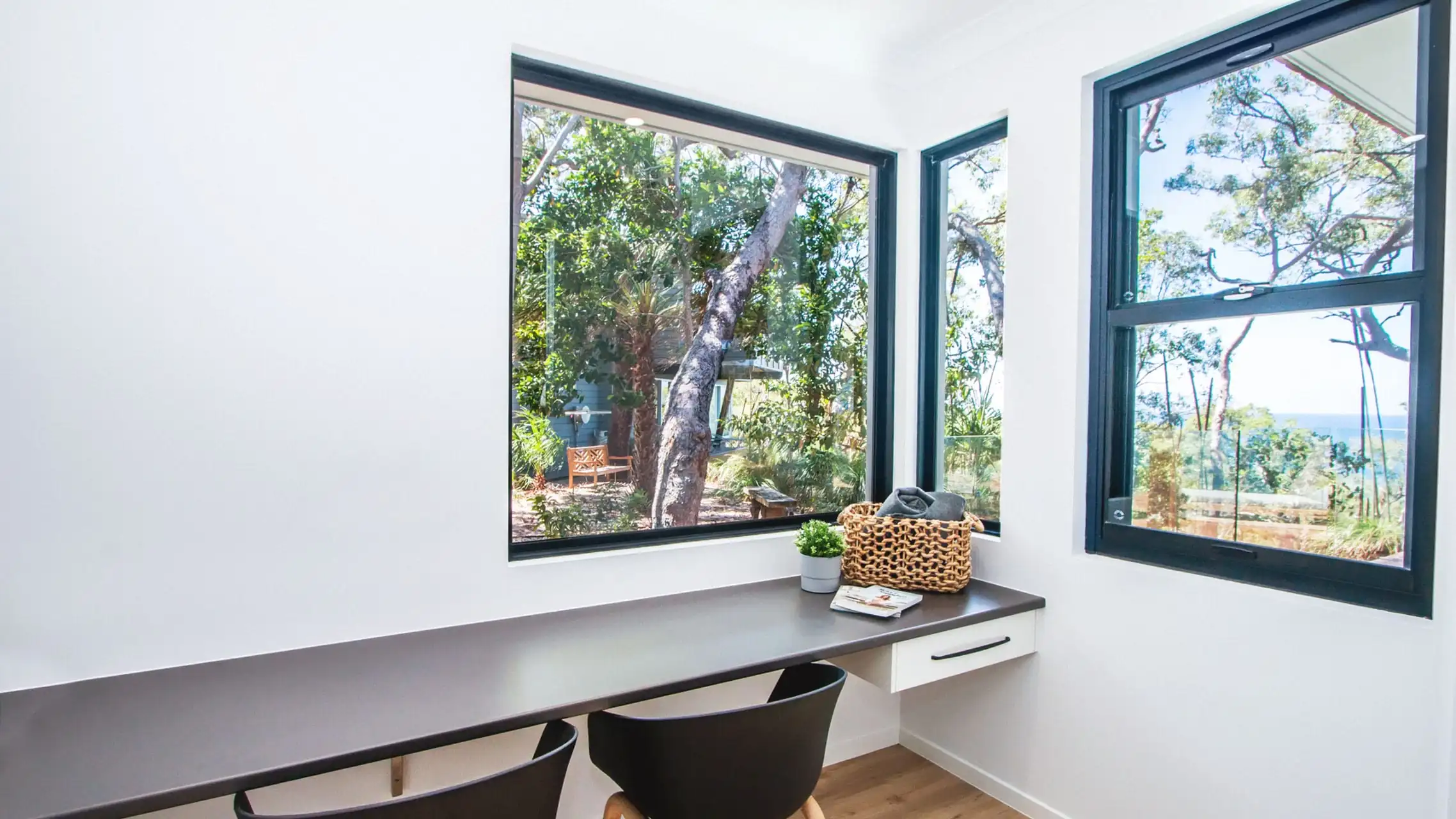

Signature CB

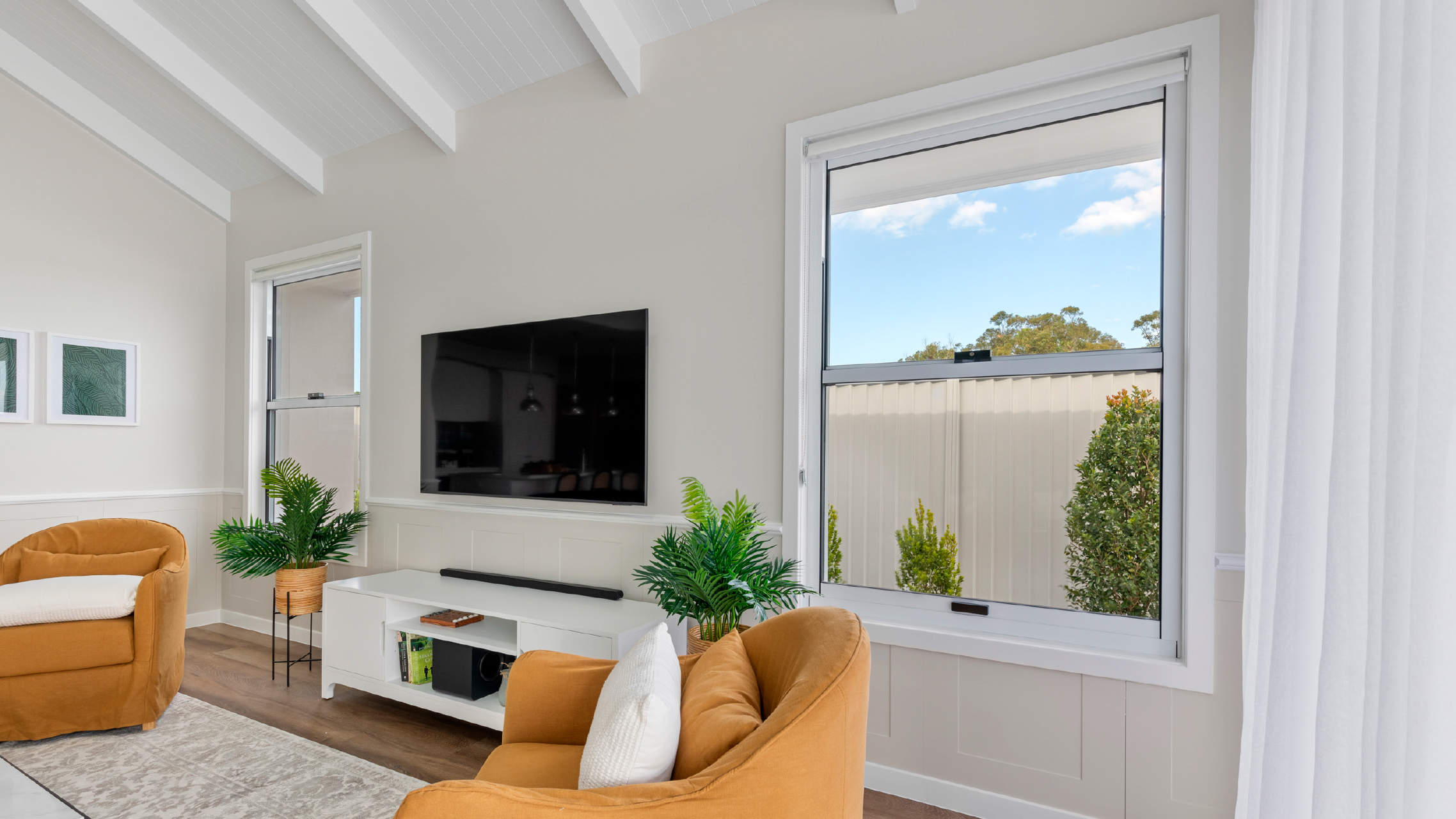

Our premium ‘Signature Counter Balanced’ double hung sash windows are secure, stylish and easy to operate. The top and bottom sashes open simultaneously via the unique counterbalanced system, which uses the weight of one sash to counter the weight of the other. With high-quality handles, frame colours to suit every home and optional screen installation, they are the premium, must-have adaptation of this classic window style.

Screenable
Key lockable handle for extra security
Can be keyed alike with other Aura products
Architectural symmetry with other Aura products
Double glazing options
Ventilation
Water Resistance
Energy Efficiency
Noise Reduction
Maximum Bushfire Rating
BAL-40
Compliant with Australian Standards
Frame Size
100mm
Maximum Water Rating
600Pa
Maximum Wind Rating
6000Pa ULS
Maximum Product Height
2450mm
Maximum Product Width
3690mm
Maximum Panel Width
1230mm
Maximum Panel Weight
42kg
Maximum Glass Thickness (single glazed)
12.76mm
Maximum Glass Thickness (double glazed)
20mm
Lowest U-value (single glazed)
4.8
Lowest U-value (double glazed)
3.4
Maximum Acoustic Rating
Rw35

Frame Colours

Standard Colours
Textura® Black (GN305A)
Textura® Monument (GL329A)
Textura® Woodland Grey (GL333A)
Textura® Dune (GL325A)
Textura® Silver (GY35LA)
Textura® Surfmist (GA336A)
Textura® White (GA330A)
Decorative Colours
Textura® Basalt (GP316A)
Textura® Deep Ocean (GJ301A)
White Birch Gloss (GA057A)
Primrose Gloss (GD037A)
Stone Beige Matt (GD247A)
Shale Grey Matt (GL284A)
Hammersley Brown Satin (GM100A)

Glass Options

Clear
Grey
Green
Blue
Spotswood
Satinlite
Acid Etched
White Translucent

Other glass options are available.

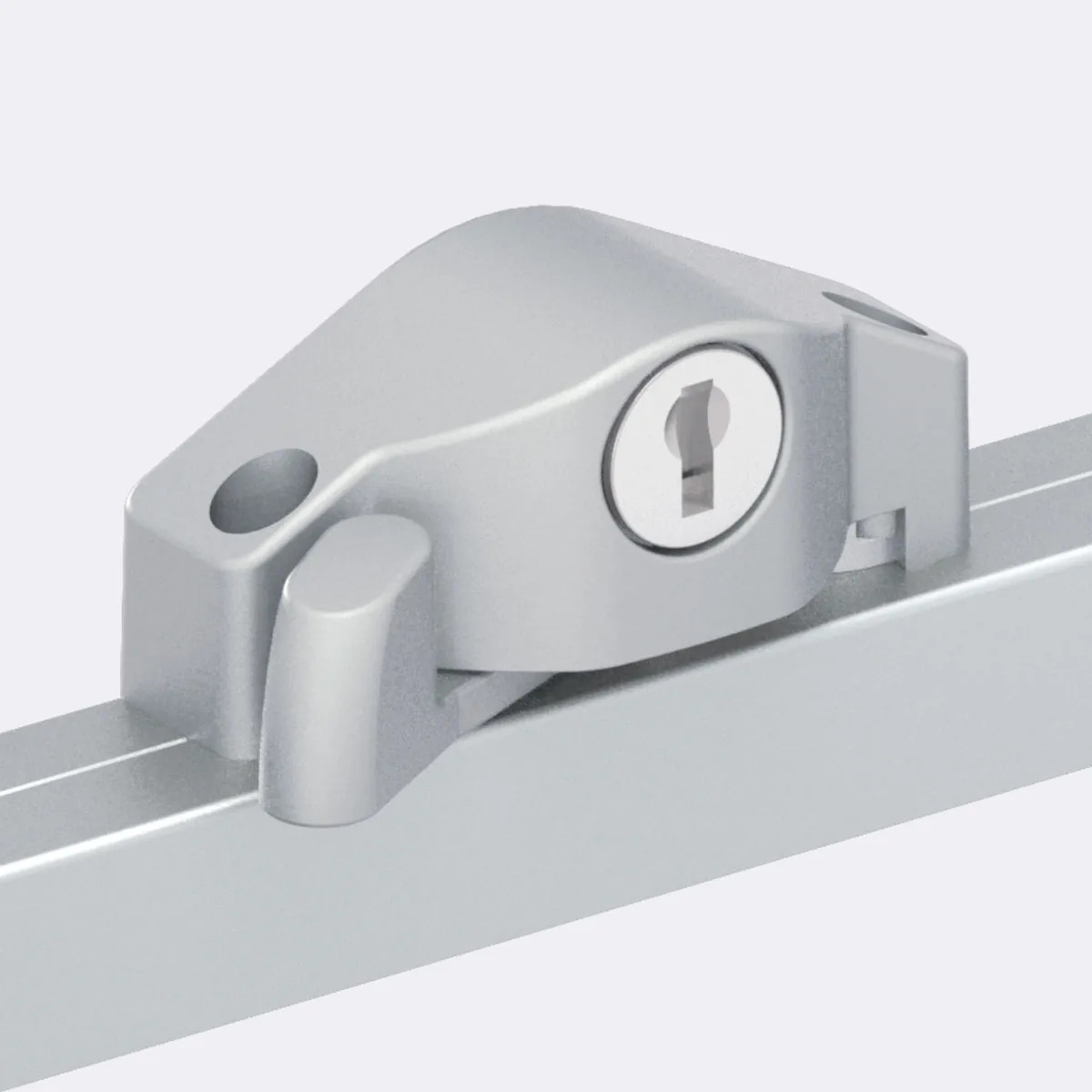

Handle Options

Essential Window Handle

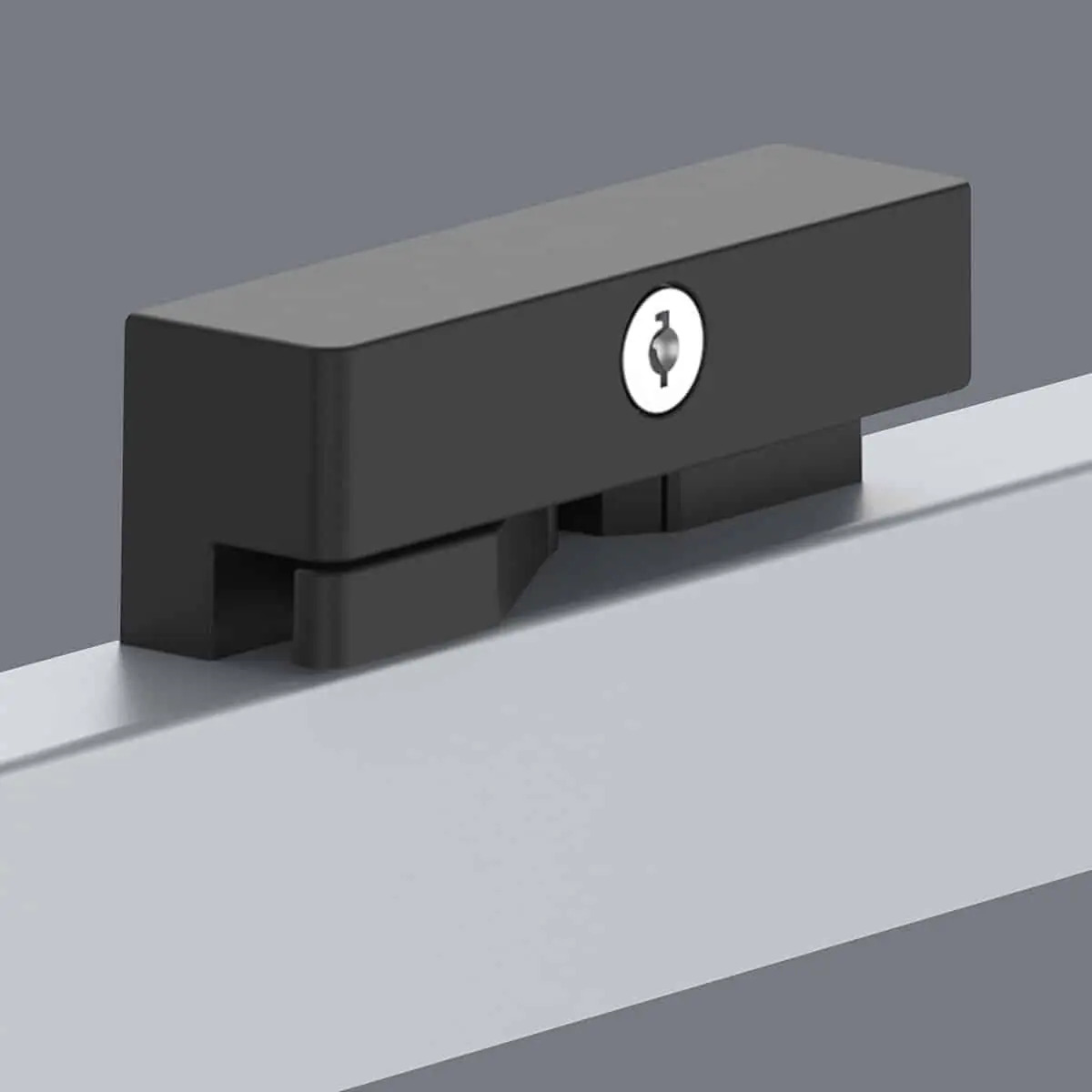

Signature CB Window Handle

Handles are available in standard (black) and decorative colours. Key locking optional.

Features

Standard Features

Essential | Signature CB

  • Ergonomic and easy-to-use handle
  • Direct fresh air into your home through the top, bottom or both ends of the window at once
  • Curtain-friendly design protects window furnishings from damage

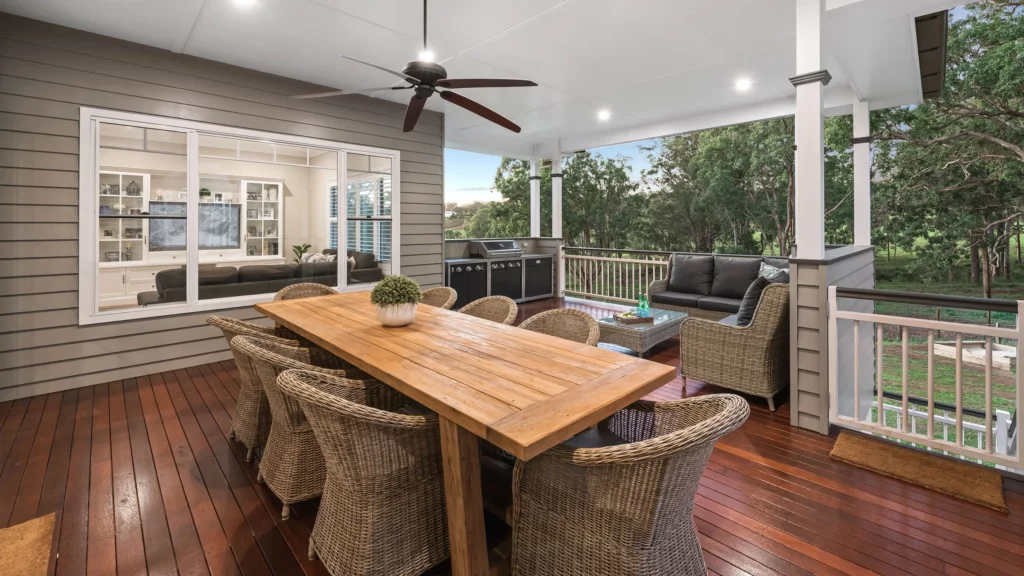

  • Combine with fixed windows to create a feature wall
  • High-quality seals provide superior protection against the elements
  • Fully compliant with relevant Australian Standards

Premium Features

Signature CB

  • Save on electricity bills with optional double glazing
  • Available in larger window sizes
  • Architectural symmetry with other Aura windows and doors
  • Top and bottom sashes open simultaneously for convenient and easy operation
  • Superior structural integrity with a larger 100mm frame

Optional Upgrades

Essential | Signature CB

  • Keys can be ‘keyed alike’ with doors for convenience¹
  • Wide range of screening solutions are available
  • Reduce outside noise by incorporating our Sound Smart™ system

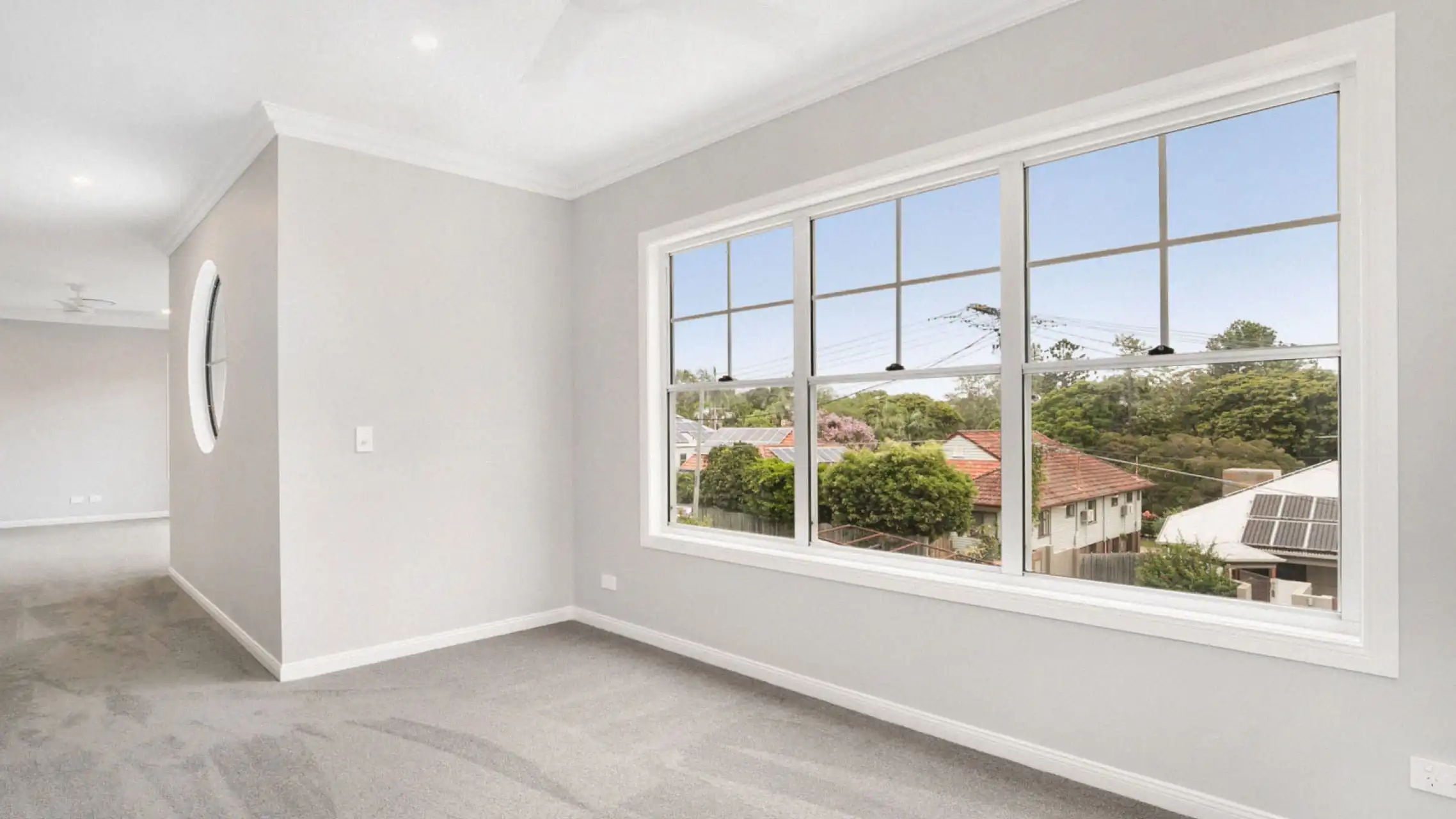

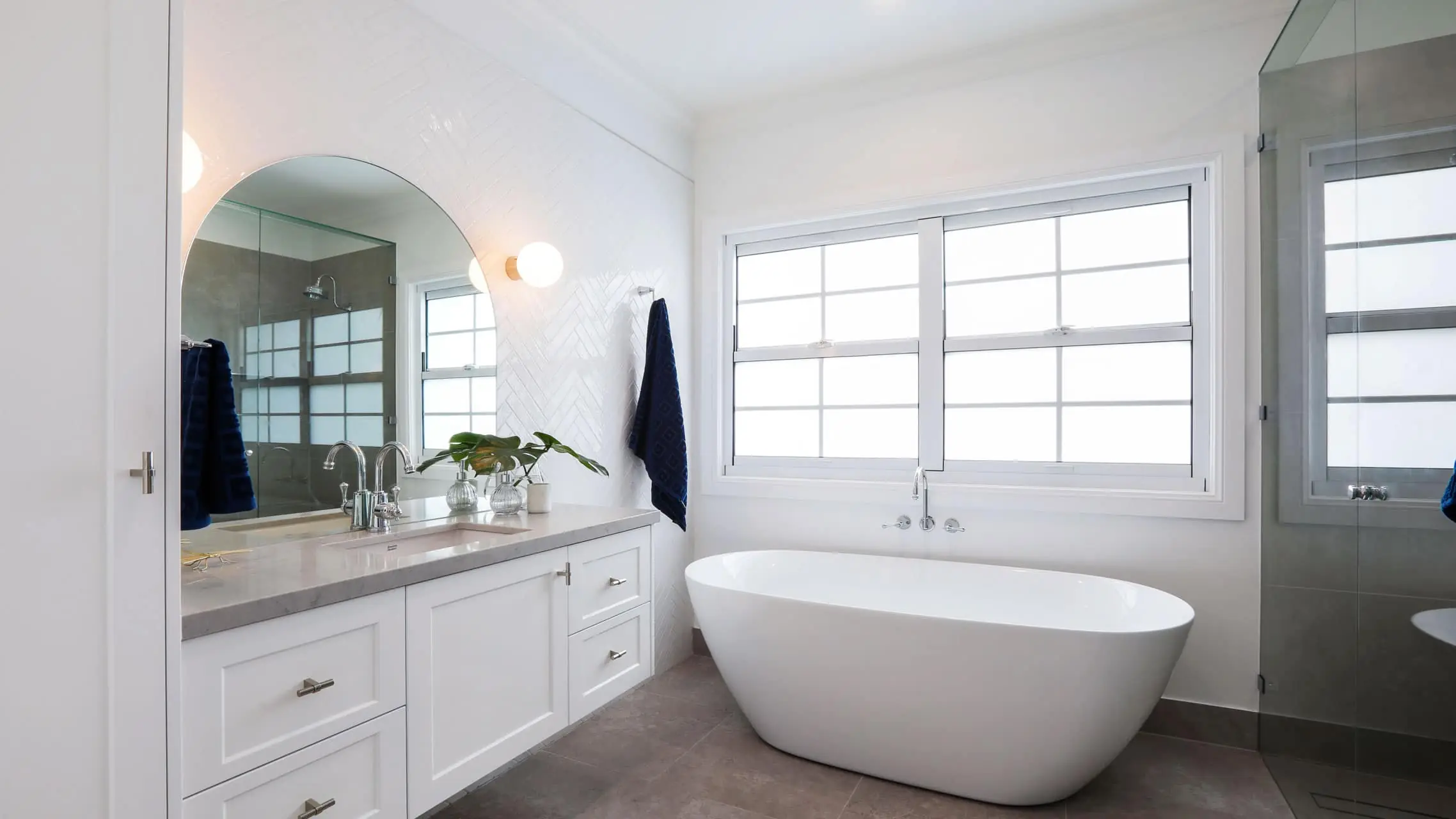

  • Create a Hamptons look with colonial bars
  • Openings can be restricted for upper-storey windows
  • Can be upgraded to suit cyclonic regions
  • Bushfire rated – can be certified up to BAL 40

Configurations & Sizes

Standard
D
DD
DF
DDD
DFD
D/F
DD/F
DF/FF
DFD/FFF
Designer
DDF
DFF
DDDD
DFFD

Other designer configurations are available.
