Aluminium Cavity Sliding Doors

Explore the Range

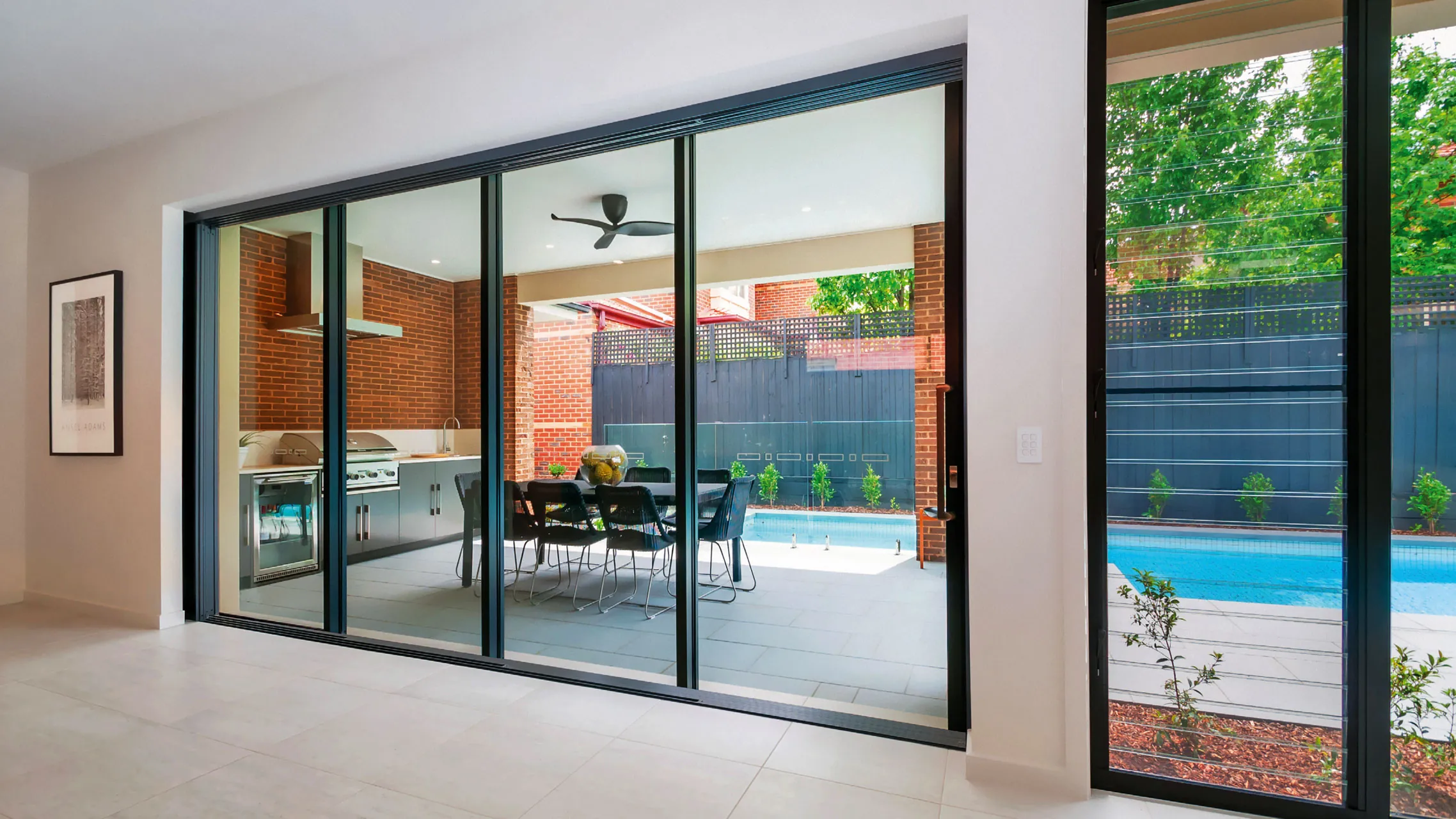

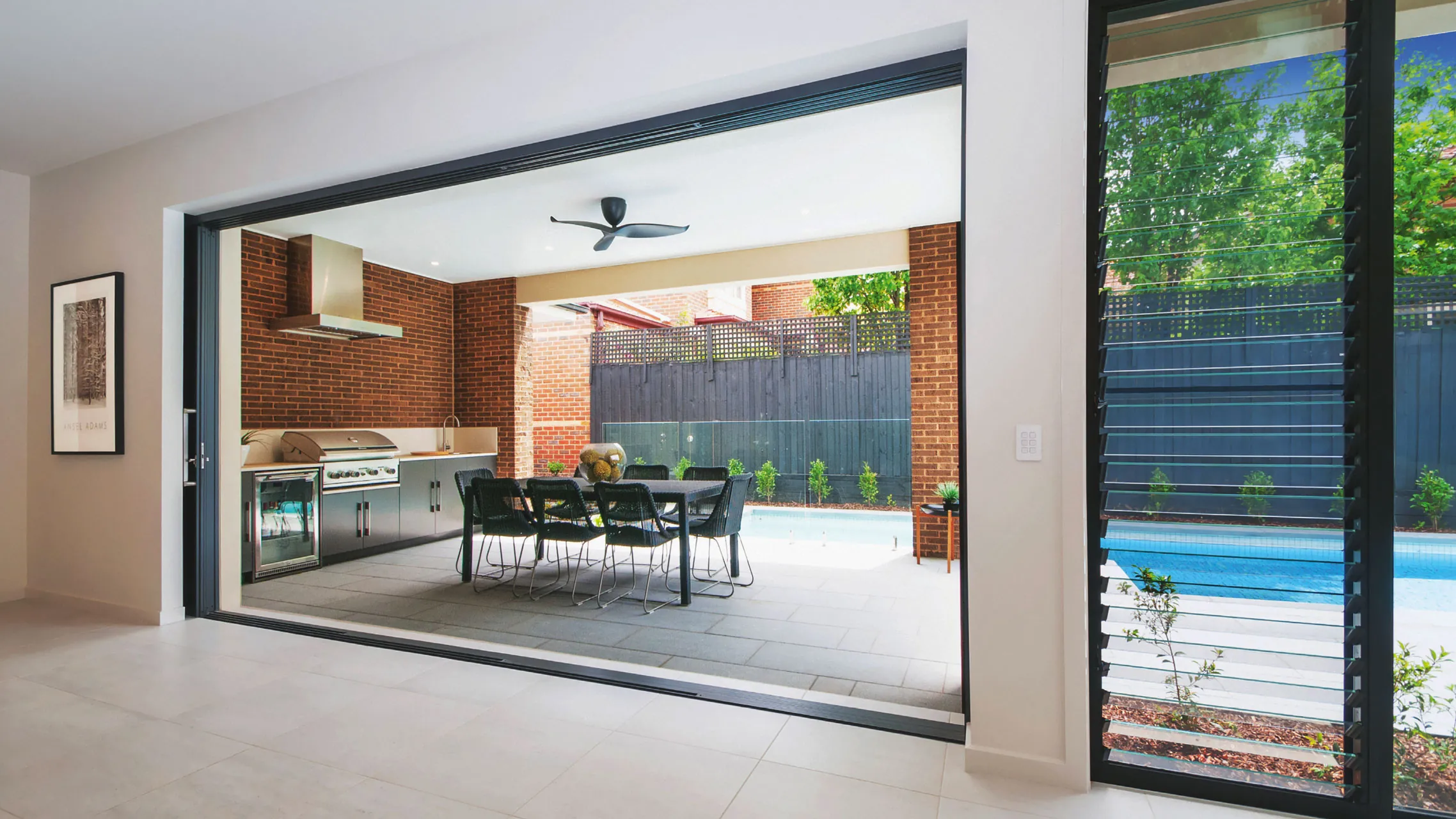

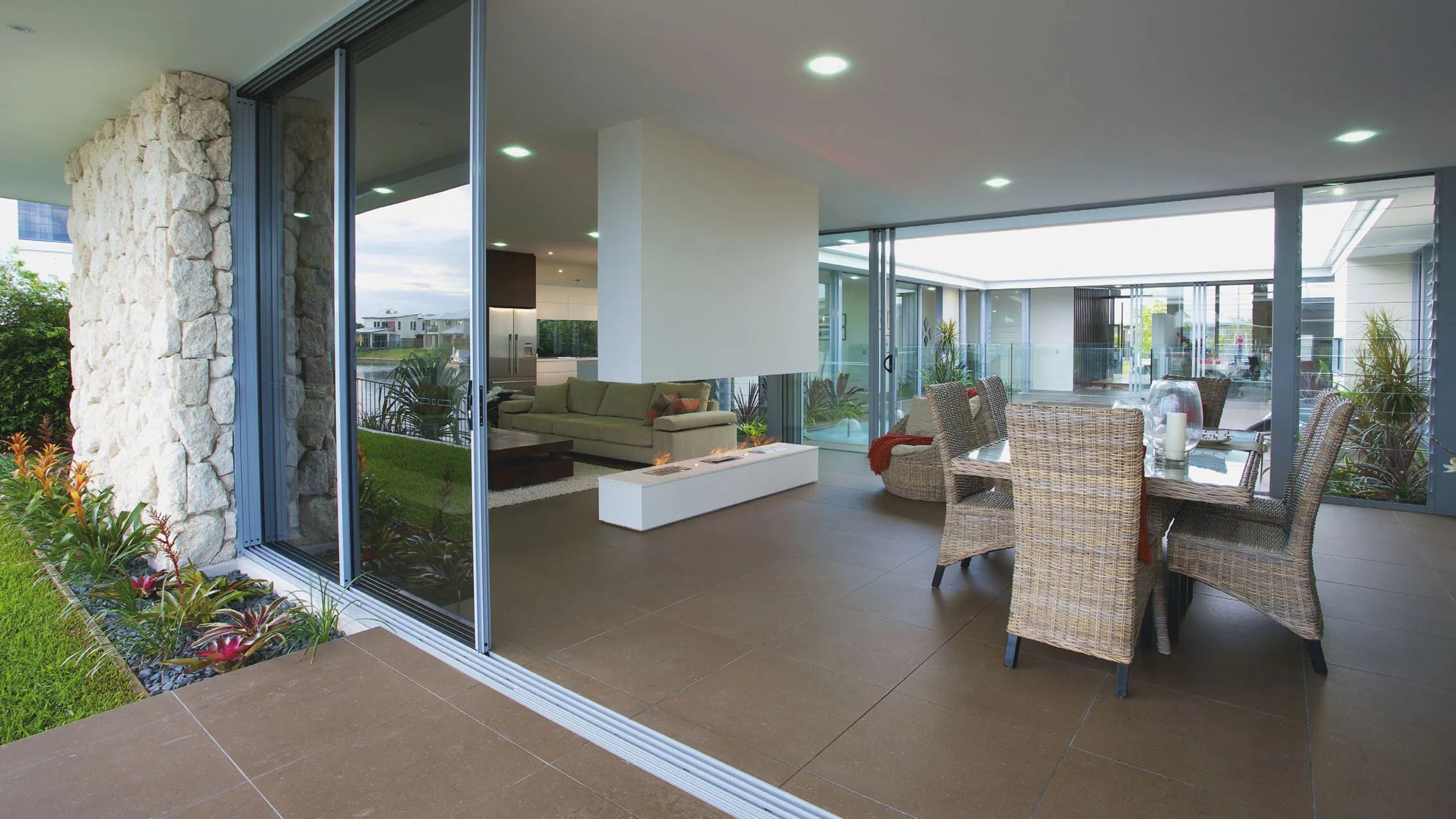

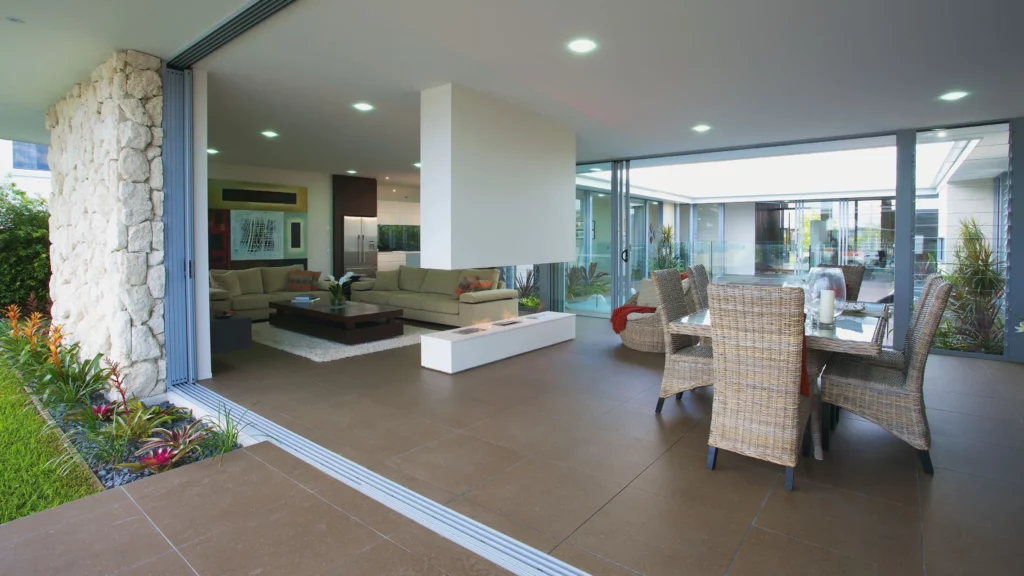

Unlike traditional ‘entertainment doors’ such as stacker doors or bi fold doors, our cavity sliding doors truly provide unobstructed views and access. Seamlessly gliding out of sight, they don’t have fixed or folded panels impeding the free flow from indoor to outdoor areas.

Signature

Our ‘Signature’ cavity sliding doors carefully tread the balance between practicality and style. With standard, oversize options and lifestyle configurations, you’re sure to find a cavity sliding door that suits your home.

Screenable
Key lockable handle for extra security
Can be keyed alike with other Aura products
Architectural symmetry with other Aura products
Double glazing options
Low profile sill option for wheelchair access
Architectural handle options

Ventilation
Water Resistance
Energy Efficiency
Noise Reduction
Maximum Bushfire Rating
BAL-40
Compliant with Australian Standards

Frame Size
100mm
166mm
Maximum Water Rating
600Pa
Maximum Wind Rating
4500Pa ULS
Maximum Product Height
2550mm
Maximum Product Width
6246mm
Maximum Panel Width
1350mm
Maximum Panel Weight
100kg
Maximum Glass Thickness (single glazed)
12.76mm
Maximum Glass Thickness (double glazed)
20mm
Lowest U-value (single glazed)
4.2
Lowest U-value (double glazed)
2.7
Maximum Acoustic Rating
Rw44

Commercial

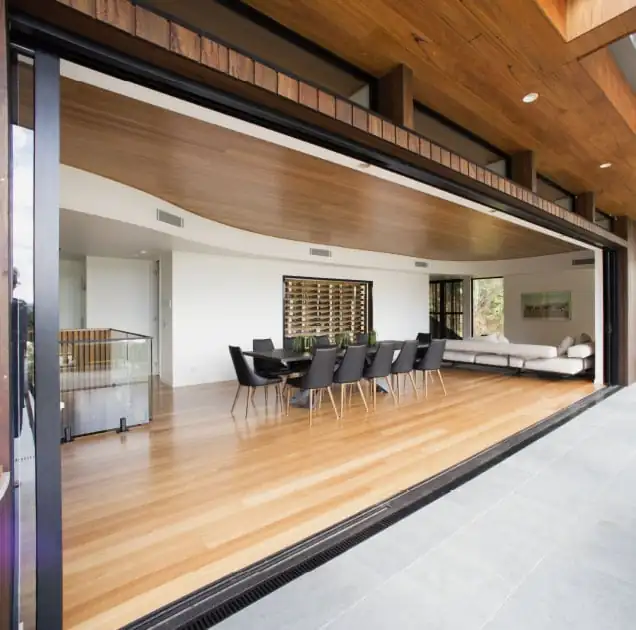

Our ‘Commercial’ collection features heavy-duty, stylish cavity sliding doors, including oversize doors. If you can’t find the cavity sliding door for your needs, chances are we can help you through our commercial range.

Screenable
Key lockable handle for extra security
Can be keyed alike with other Aura products
Architectural symmetry with other Aura products
Double glazing options
Low profile sill option for wheelchair access
Architectural handle options

Ventilation
Water Resistance
Energy Efficiency
Noise Reduction
Maximum Bushfire Rating
BAL-40
Compliant with Australian Standards

Frame Size
100mm
150mm
200mm
250mm
Maximum Water Rating
650Pa
Maximum Wind Rating
6000Pa ULS
Maximum Product Height
2750mm
Maximum Product Width
12000mm
Maximum Panel Width
1800mm
Maximum Panel Weight
160kg
Maximum Glass Thickness (single glazed)
10.76mm
Maximum Glass Thickness (double glazed)
28mm
Lowest U-value (single glazed)
4.5
Lowest U-value (double glazed)
3.1
Maximum Acoustic Rating
Rw35

Frame Colours

Standard Colours

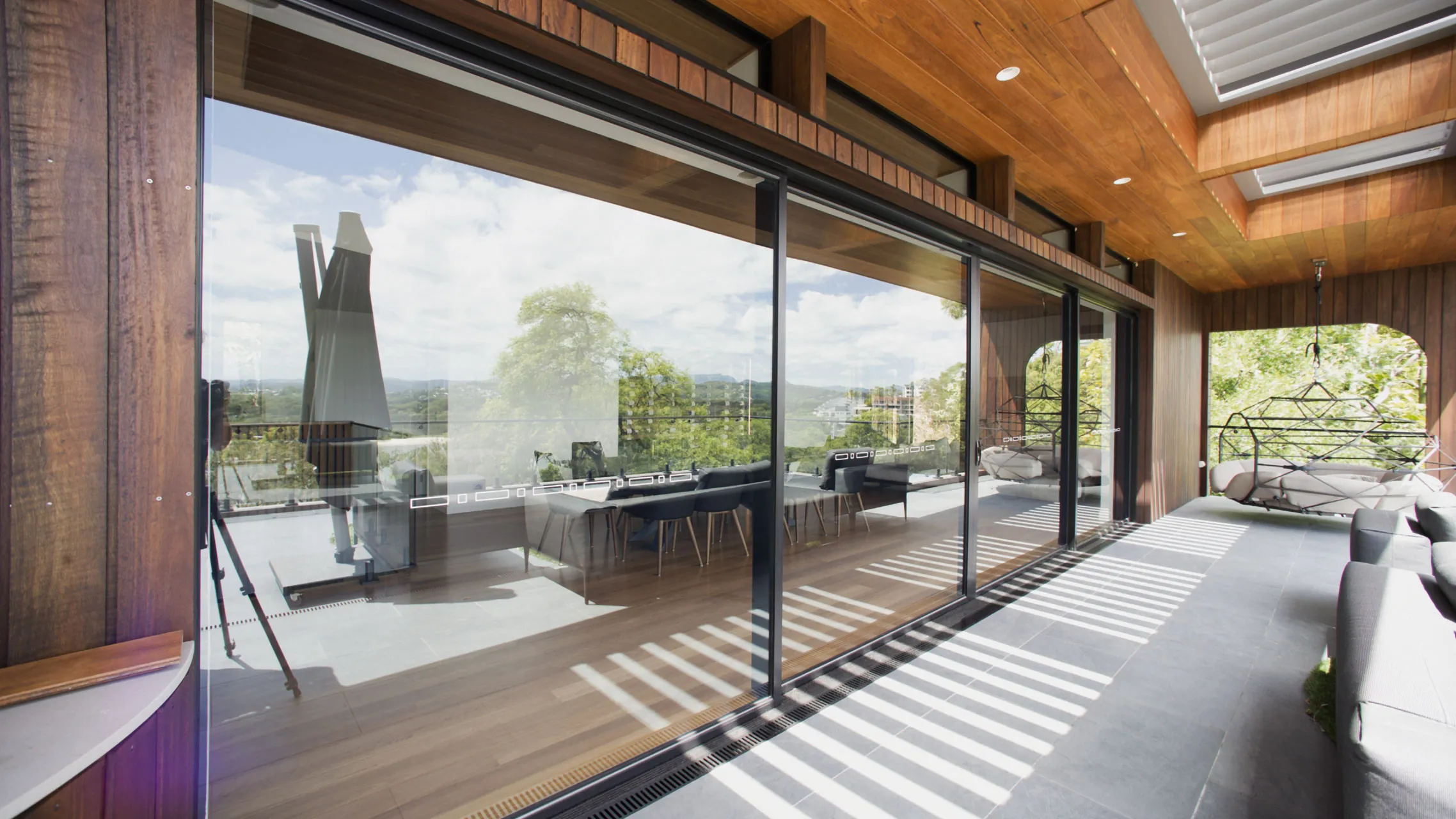

Textura® Black (GN305A)
Textura® Monument (GA236A)
Textura® Woodland Grey (GL333A)
Textura® Dune (GL325A)
Textura® Silver (GY35LA)
Textura® Surfmist (GA336A)
Textura® White (GA330A)
Decorative Colours
Textura® Basalt (GP316A)
Textura® Deep Ocean (GJ301A)
White Birch Gloss (GA057A)
Primrose Gloss (GD037A)
Stone Beige Matt (GD247A)
Shale Grey Matt (GL284A)
Hammersley Brown Satin (GM100A)

Glass Options

Clear

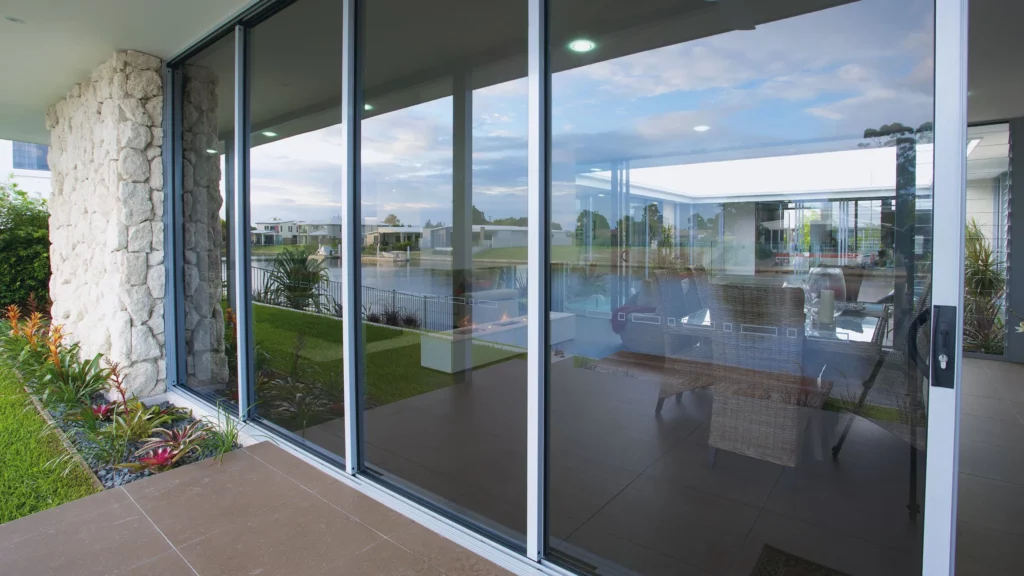

Grey
Green
Blue
Spotswood
Satinlite
Acid Etched
White Translucent

Other glass options are available.

Handle Options

Standard Internal Handle
Standard External Handle

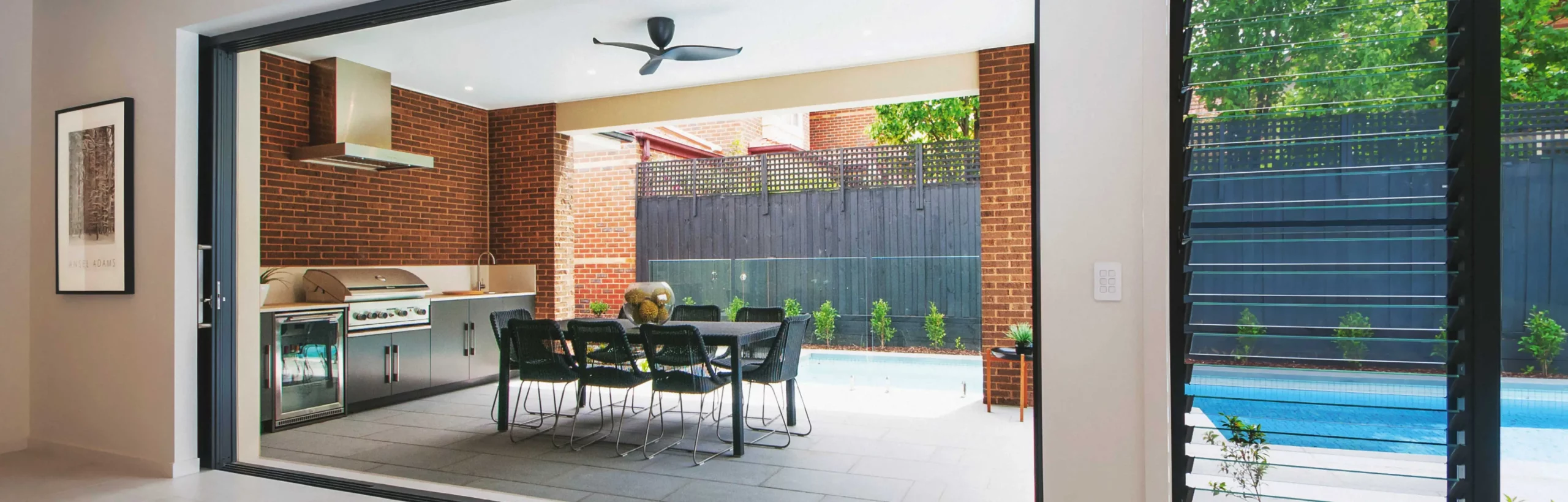

Architectural Handle

Internal and external handles are available in standard (black) and decorative colours. Offset handle is available in Signature and Commercial doors, and stainless steel finish only.

Features

Lifestyle & Comfort

  • Ergonomic, easy-to-use handle
  • Night latch locks the door preventing someone from opening it from the outside without a key
  • Easy-to-clean wide track that can fit most vacuum heads
  • Safety-first design with no exposed sharp edges
  • Perfectly suited for indoor-outdoor entertainment areas

Optional

  • Keys can be ‘keyed alike’ with windows for convenience*

Design & Aesthetic

  • Available in a range of lifestyle configurations
  • Curtain-friendly design protects door furnishings from sharp edges
  • Architectural symmetry with other Aura windows and doors

Optional

  • Architectural handles available
  • Create a Hamptons look with colonial bars

Performance & Reliability

  • Fully compliant with relevant Australian Standards
  • Mortice lock fitted as a standard feature for superior security
  • Effortless operation with high-performance, adjustable rollers
  • Protection against the elements with high-quality weatherstripping

Optional

  • Save on energy bills with double glazing
  • Reduce outside noise by incorporating our Sound Smart™ system
  • Bushfire rated – can be certified up to BAL 40
  • Can be upgraded to suit cyclonic regions

Premium Features

Commercial Cavity Sliding Doors Only

  • Door panels can be as wide as 1.8 metres

Terms & Conditions

Product availability, pricing, features, options, sizes, configurations and performance are subject to regional variations, design requirements, and building codes. Images are for illustration purposes only and may not accurately represent the product. Aura Windows & Doors reserves the right to change, alter or delete any aspect of this product without notice. We recommend visiting the Aura showroom before ordering to view colour swatches, glass samples and actual products.

*excludes cam handles, vent locks and patio bolts
