Aluminium Casement Windows

Explore the Range

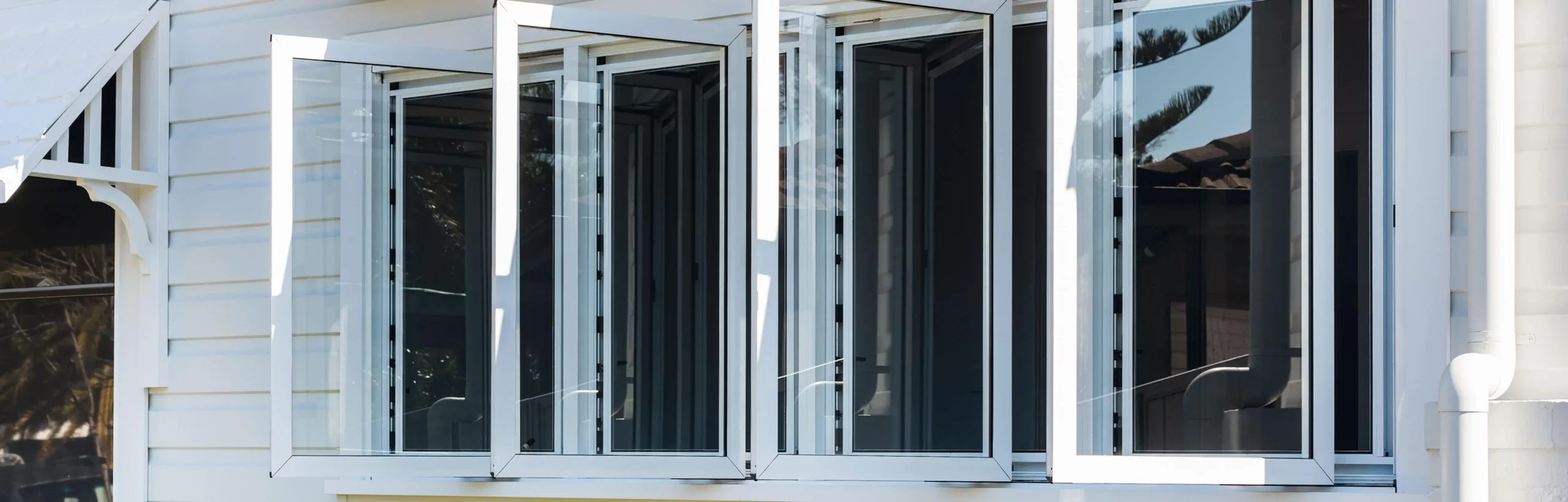

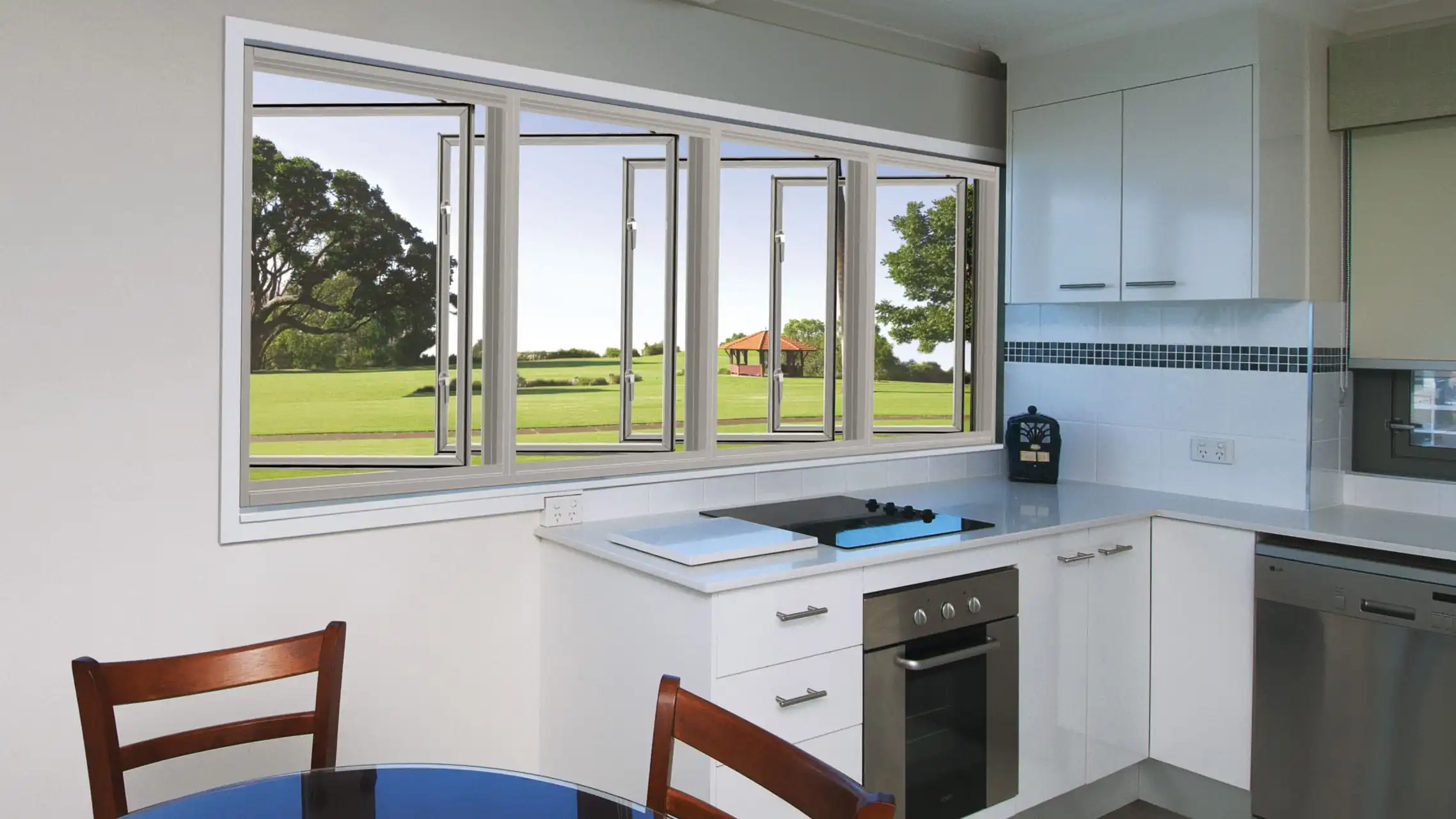

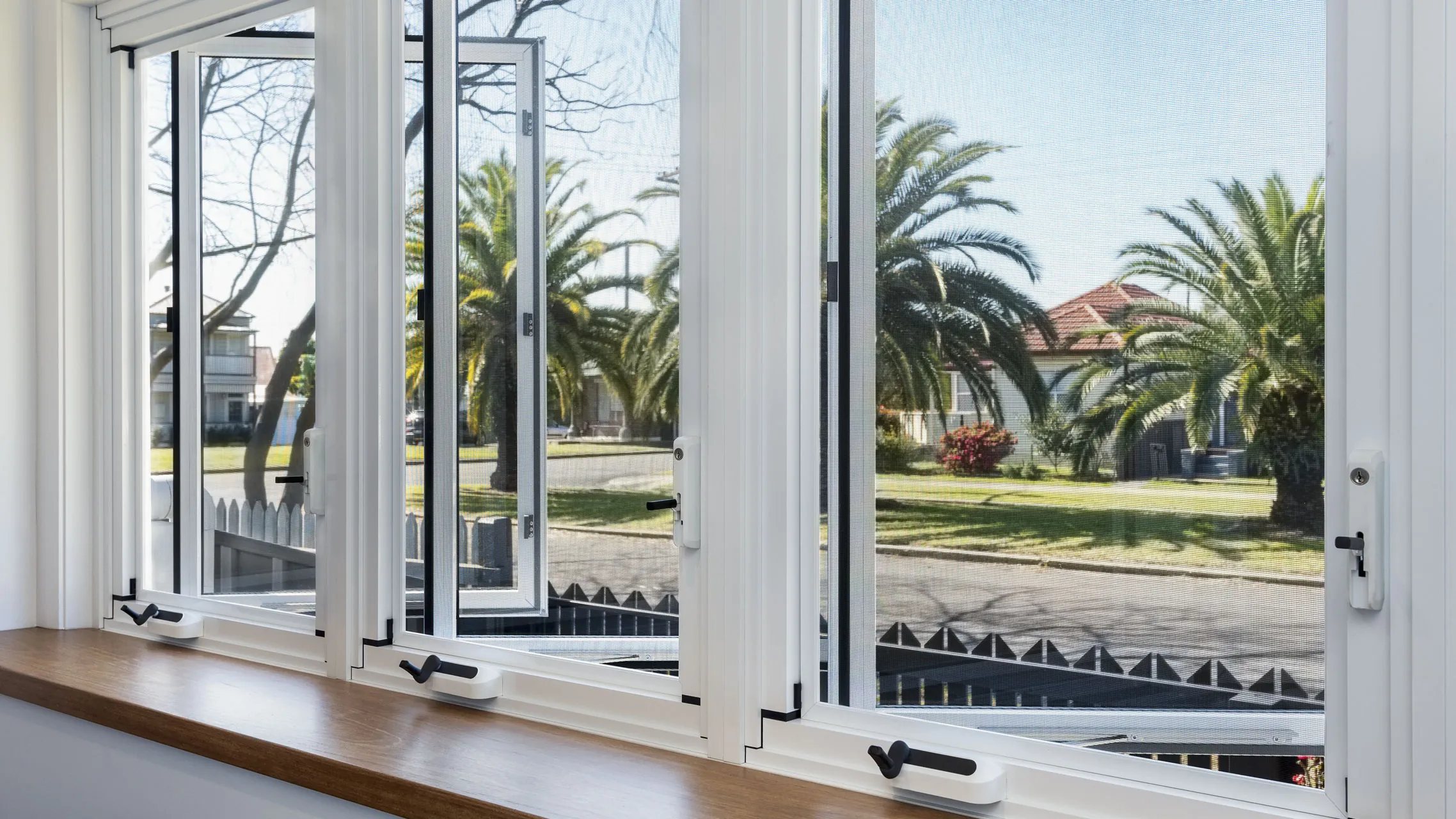

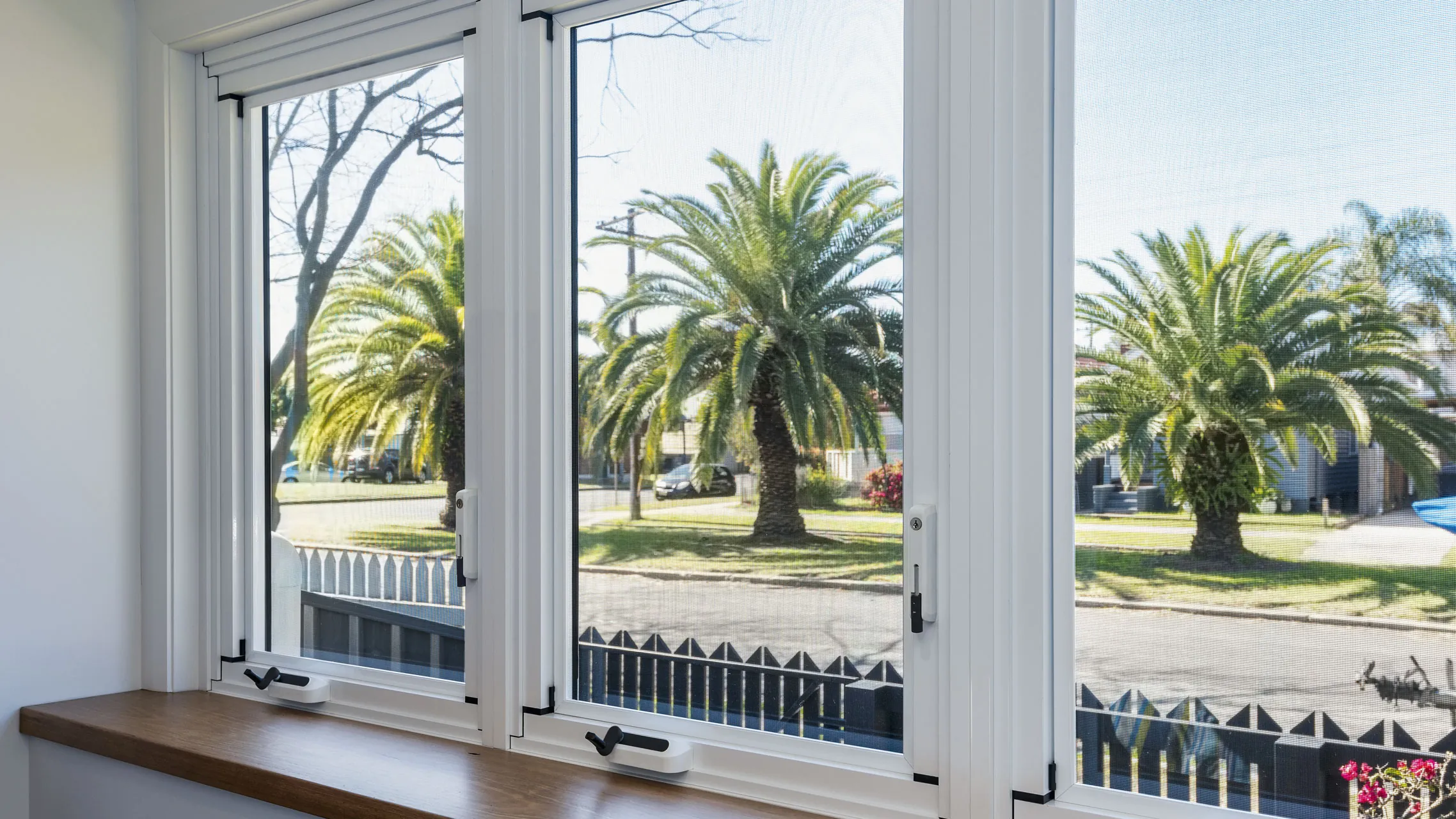

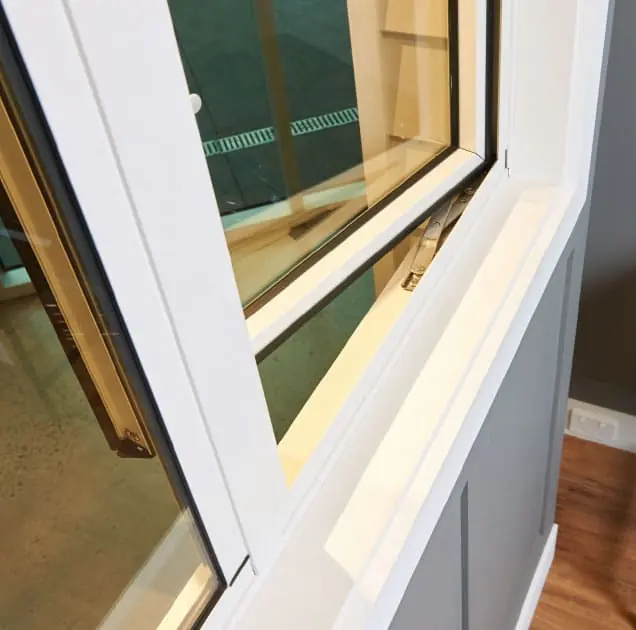

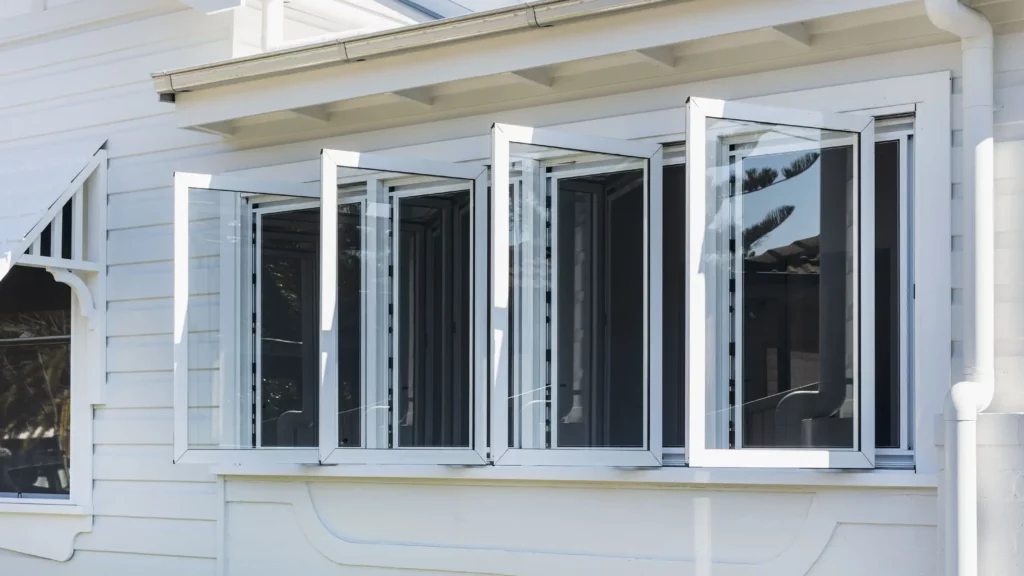

If you want fresh air in your home, you can’t look past aluminium casement windows. Robust, secure and stylish, they are a long-established customer favourite. Casement windows are hinged on the left or right side and swing outwards like hinged doors. They may feature one or more sashes within a single window frame.

Essential

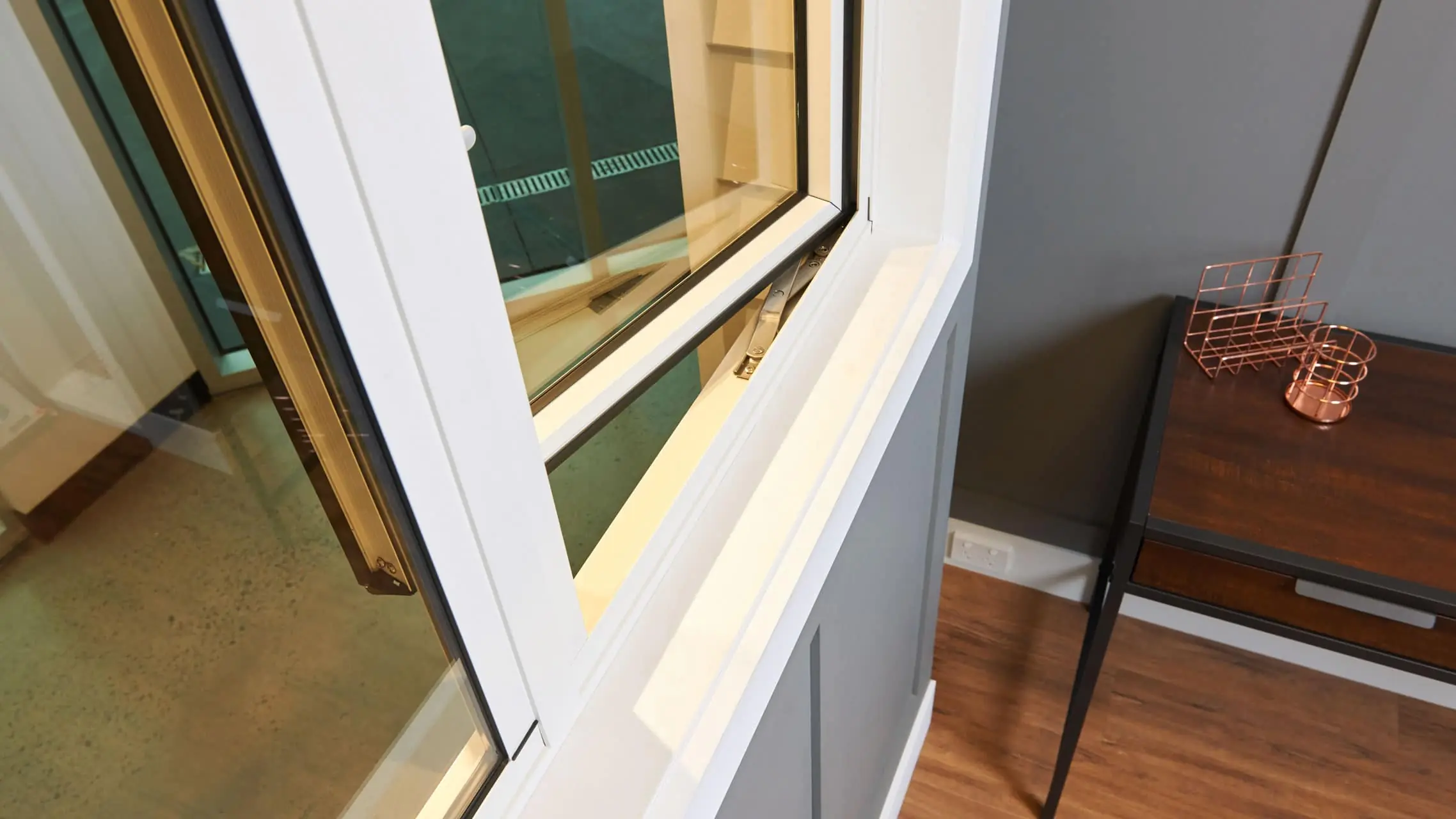

Welcome the fresh air into your home with our ‘Essential‘ casement windows. An old-style favourite reimagined in a contemporary setting, they have an almost 90-degree opening angle and are great for ventilation.

Screenable
Key lockable handle for extra security
Can be keyed alike with other Aura products
Architectural symmetry with other Aura products
Double glazing options
Ventilation
Water Resistance
Energy Efficiency
Noise Reduction
Maximum Bushfire Rating
BAL-40
Compliant with Australian Standards
Frame Size
52mm
Maximum Water Rating
600Pa
Maximum Wind Rating
4500Pa ULS
Maximum Product Height
1800mm
Maximum Product Width
3440mm
Maximum Panel Width
860mm
Maximum Panel Weight
42kg
Maximum Glass Thickness (single glazed)
12.76mm
Maximum Glass Thickness (double glazed)
24mm
Lowest U-value (single glazed)
4.9
Lowest U-value (double glazed)
3.0
Maximum Acoustic Rating
Rw37

Signature

Architectural, sturdy and oh-so-very classy, our ‘Signature‘ casement windows accentuate picturesque views with a ‘picture frame’ look created with improved mitre joints and narrow frame profiles.

Screenable
Key lockable handle for extra security
Can be keyed alike with other Aura products
Architectural symmetry with other Aura products
Double glazing options
Ventilation
Water Resistance
Energy Efficiency
Noise Reduction
Maximum Bushfire Rating
BAL-40
Compliant with Australian Standards
Frame Size
100mm
Maximum Water Rating
600Pa
Maximum Wind Rating
4500Pa ULS
Maximum Product Height
1800mm
Maximum Product Width
3440mm
Maximum Panel Width
860mm
Maximum Panel Weight
42kg
Maximum Glass Thickness (single glazed)
12.76mm
Maximum Glass Thickness (double glazed)
24mm
Lowest U-value (single glazed)
5.1
Lowest U-value (double glazed)
3.5
Maximum Acoustic Rating
Rw38

Signature LB

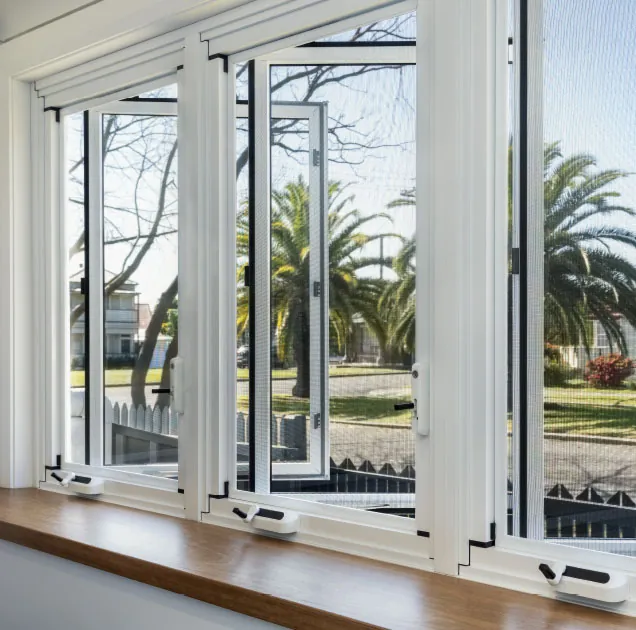

Our premium ‘Signature Lockbar‘ casement windows are robust, secure and stylish. Best of all, optional security and insect screens can be installed to keep bugs and intruders out without compromising access to the handle.

Screenable
Key lockable handle for extra security
Can be keyed alike with other Aura products
Architectural symmetry with other Aura products
Double glazing options
Ventilation
Water Resistance
Energy Efficiency
Noise Reduction
Maximum Bushfire Rating
BAL-40
Compliant with Australian Standards
Frame Size
100mm
Maximum Water Rating
600Pa
Maximum Wind Rating
6000Pa ULS
Maximum Product Height
2400mm
Maximum Product Width
3440mm
Maximum Panel Width
860mm
Maximum Panel Weight
42kg
Maximum Glass Thickness (single glazed)
12.76mm
Maximum Glass Thickness (double glazed)
24mm
Lowest U-value (single glazed)
5.0
Lowest U-value (double glazed)
3.5
Maximum Acoustic Rating
Rw38

Frame Colours

Standard Colours
Textura® Black (GN305A)
Textura® Monument (GL329A)
Textura® Woodland Grey (GL333A)
Textura® Dune (GL325A)
Textura® Silver (GL205A)
Textura® Surfmist (GL229A)
Textura® White (GA330A)
Decorative Colours
Textura® Basalt (GP316A)
Textura® Deep Ocean (GJ301A)
White Birch Gloss (GA057A)
Primrose Gloss (GD037A)
Stone Beige Matt (GD247A)
Shale Grey Matt (GL284A)
Hammersley Brown Satin (GM100A)

Glass Options

Clear
Grey
Green
Blue
Spotswood
Satinlite
Acid Etched
White Translucent

Other glass options are available.

Handle Options

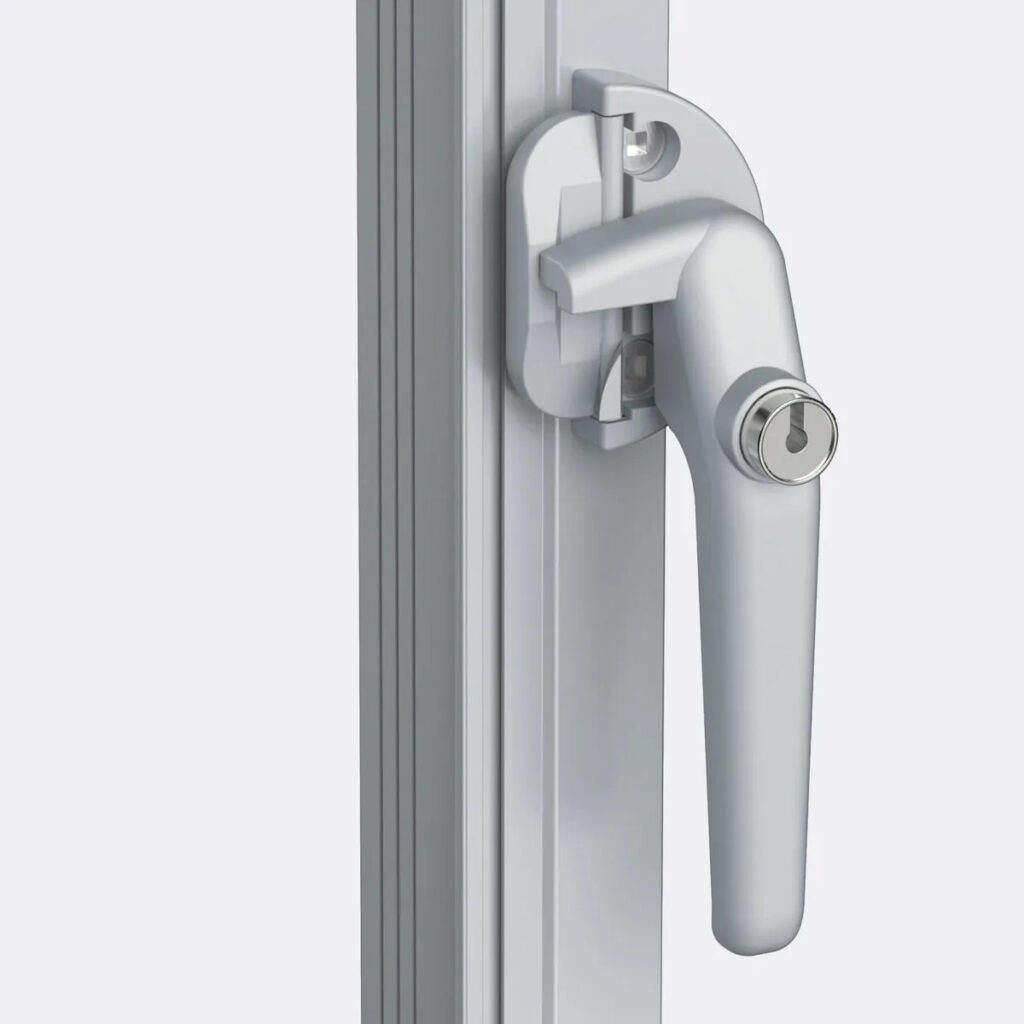

Essential & Signature Handle

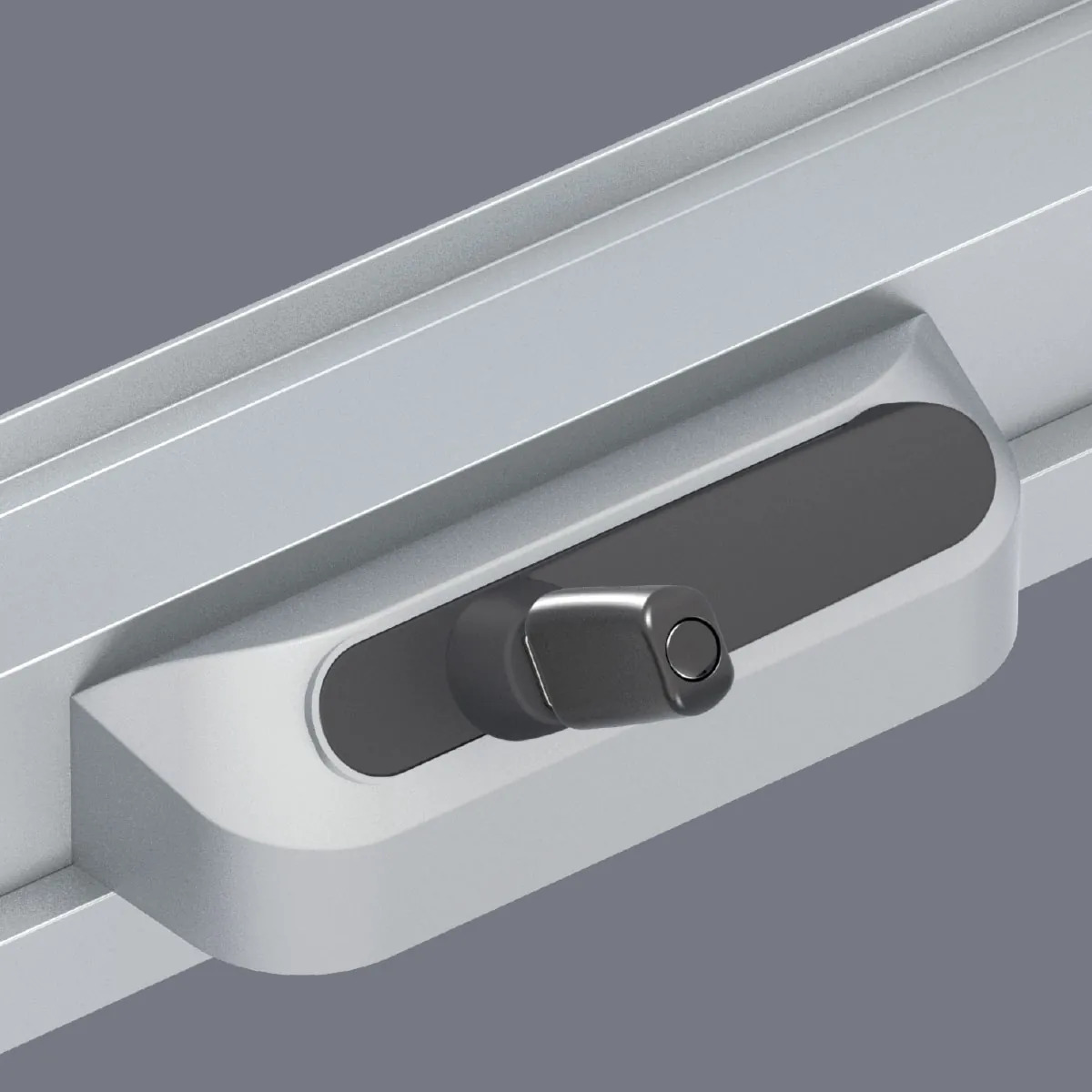

Signature Lockbar Winder


Features

Standard Features

Essential | Signature | Signature LB

  • Ergonomic and easy-to-use handle
  • Easy operation thanks to stainless steel stays
  • Wide openings invite fresh air into you home

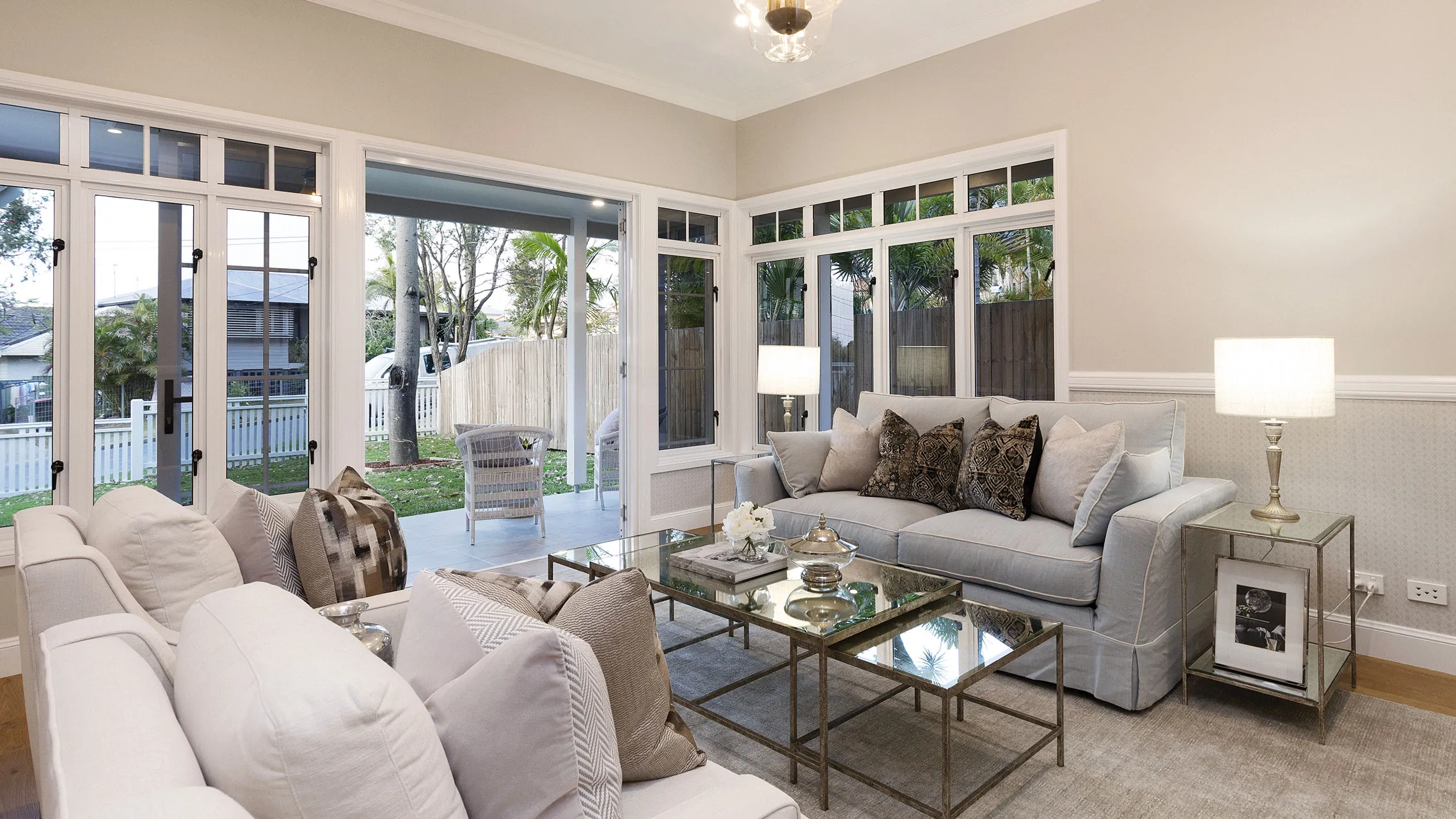

  • Combine with fixed windows to create a feature wall
  • Curtain-friendly design protects window furnishings from damage
  • High-quality window seals provide superior protection against the elements
  • Architectural symmetry with other Aura windows and doors
  • Fully compliant with relevant Australian Standards

Premium Features

Signature | Signature LB

  • Available in larger window sizes
  • Superior structural integrity with a larger 100mm frame

Signature LB

  • Foldable handle for convenience
  • Superior safety with a multi-point lock system
  • Glass can be replaced from the inside of the building – ideal for multi-storey projects

Optional Upgrades

Essential | Signature | Signature LB

  • Save on electricity bills with double glazing
  • Reduce noise by incorporating our Sound Smart™ system
  • Openings can be restricted for upper storey windows

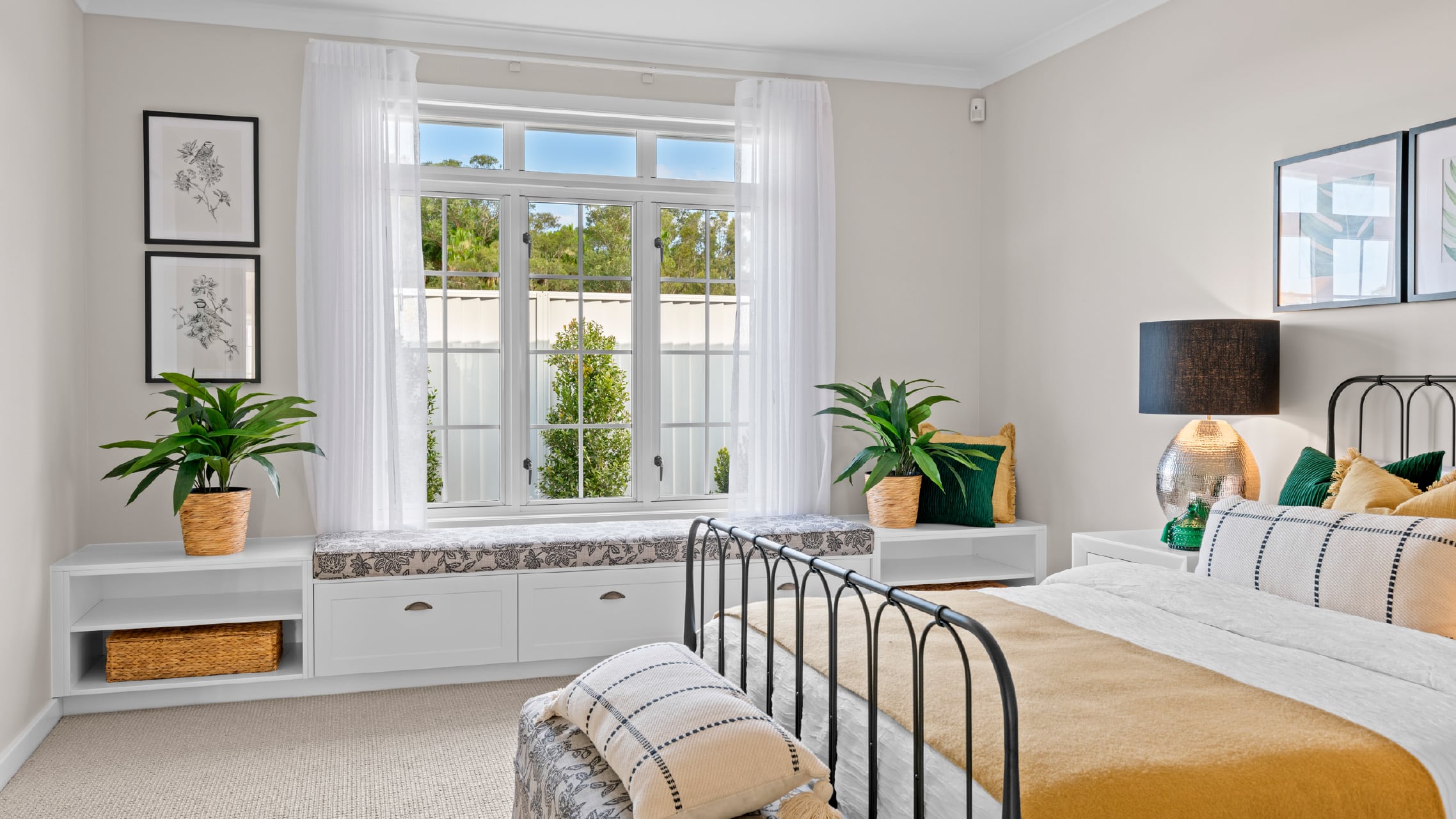

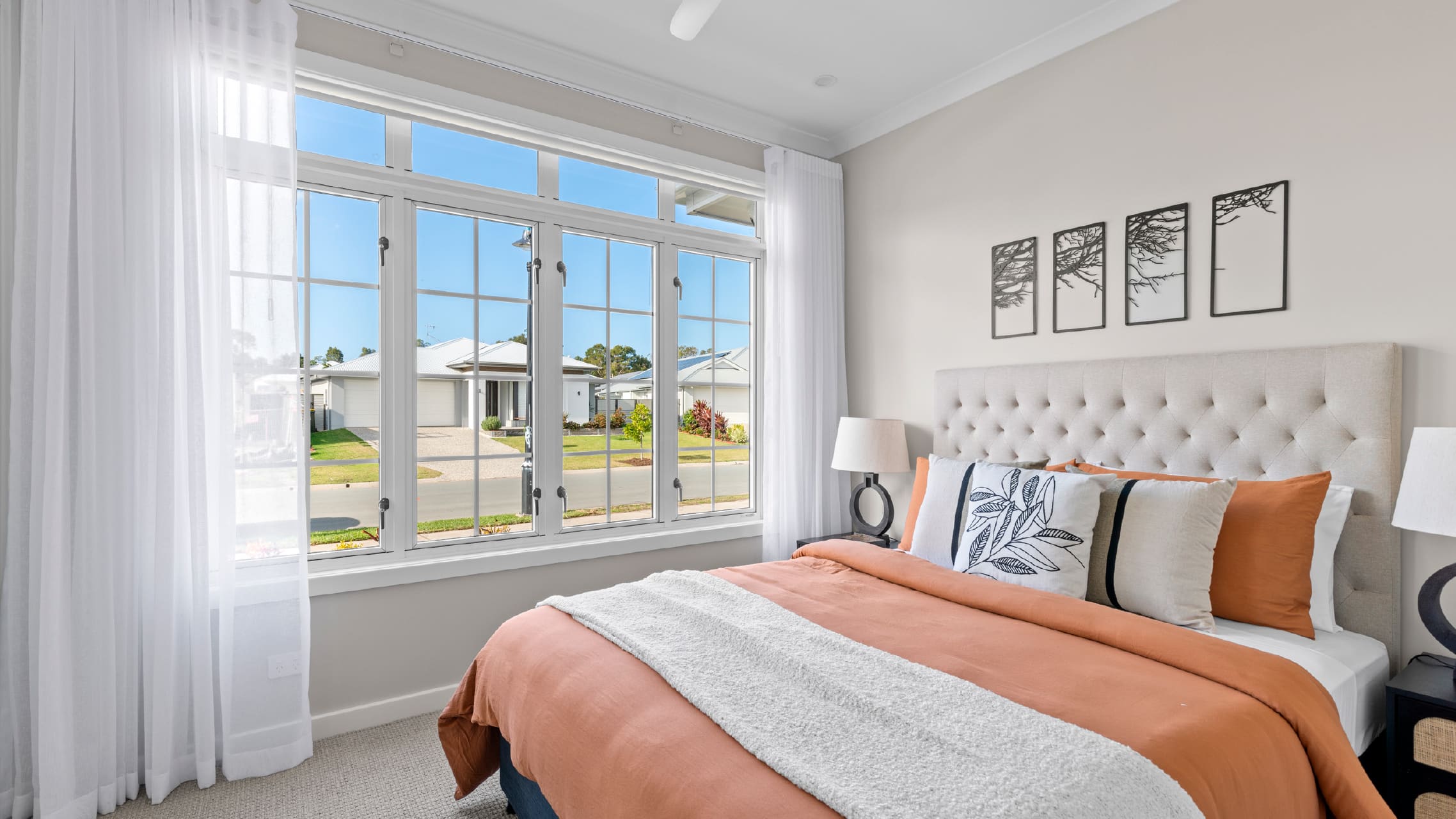

  • Create a Hamptons look with colonial bars
  • Can be upgraded to suit cyclonic regions
  • Bushfire rated – can be certified up to BAL 40

Signature LB

  • Wide range of screening solutions are available
  • Keys can be ‘keyed alike’ with doors for convenience¹

Configurations & Sizes

Standard
C
CC
CF
CCC
CFC
CCCC

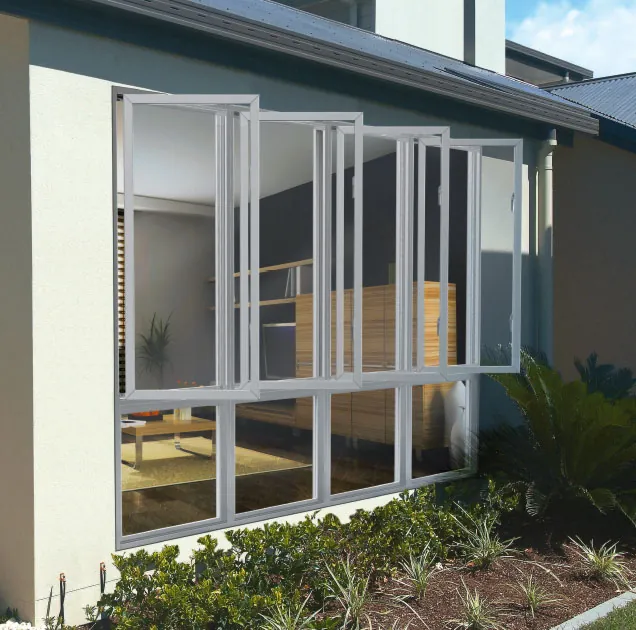

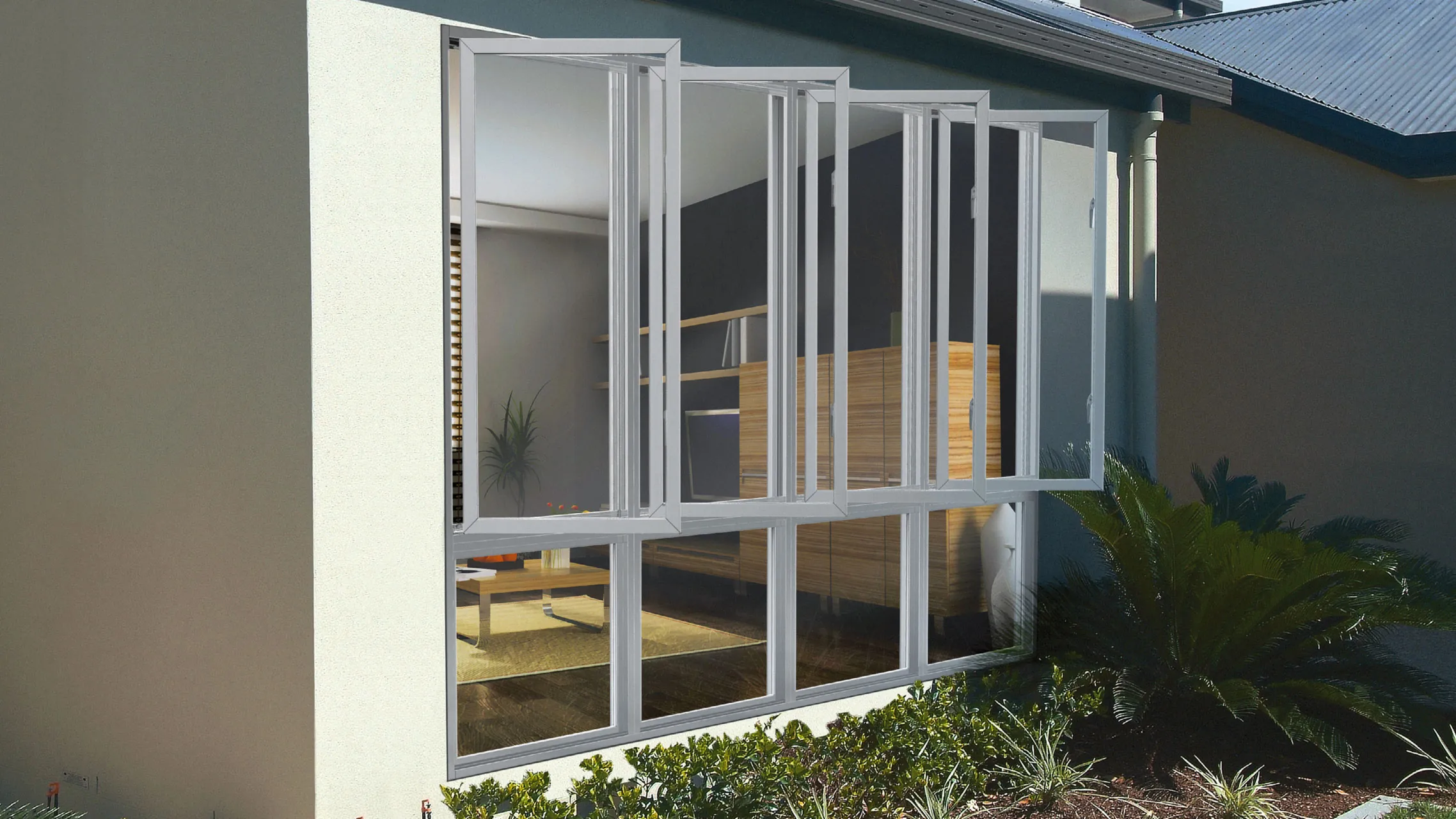

C/F
CF/F
CC/F
CF/FF
CC/FF
CCC/FFF
CFC/FFF
Designer
CCF
CFF
CFFC

Other designer configurations are available.

View Sizes PDF

Terms & Conditions

Product availability, pricing, features, options, sizes, configurations and performance are subject to regional variations, design requirements, and building codes. Images are for illustration purposes only and may not accurately represent the product. Aura Windows & Doors reserves the right to change, alter or delete any aspect of this product without notice. We recommend visiting the Aura showroom before ordering to view colour swatches, glass samples and actual products.

¹excludes patio bolts and commercial hinged & pivot doors
