Aluminium Bi-Fold Windows

Explore the Range

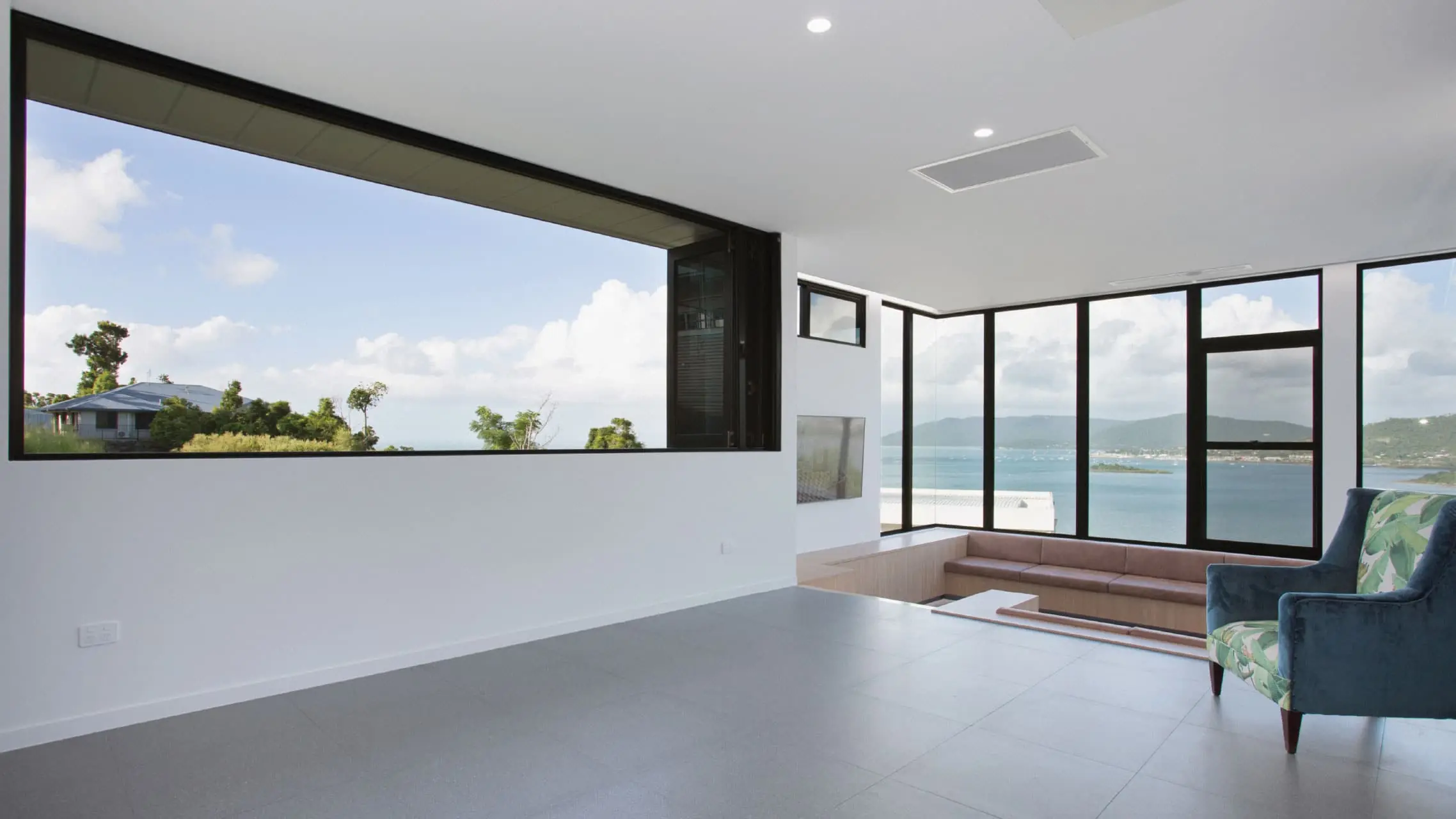

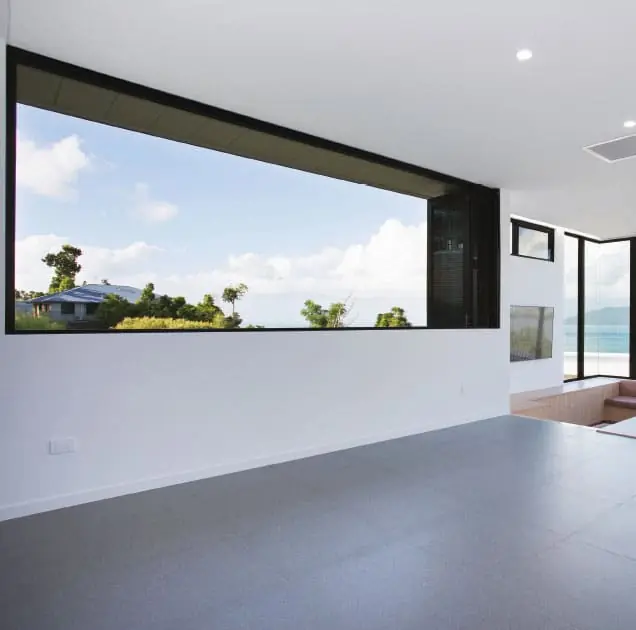

Whether you’re after wide opening spaces, unobstructed views, or a stylish and functional servery window, our aluminium bi fold windows have got you covered. Secure, versatile and chic, they feature all the bells and whistles you need. Sometimes referred to as ‘concertina windows’ or ‘folding windows’ bi fold windows fully maximise openings, setting them apart from other windows that only slide open halfway or swing open to a fixed degree.

Signature

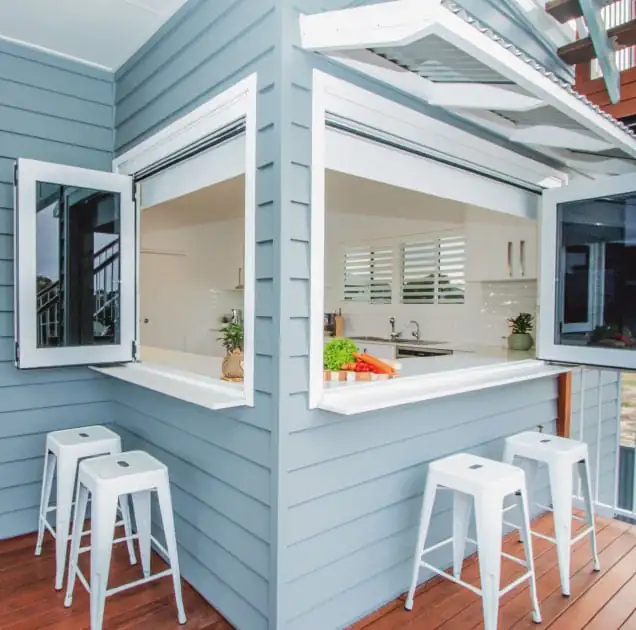

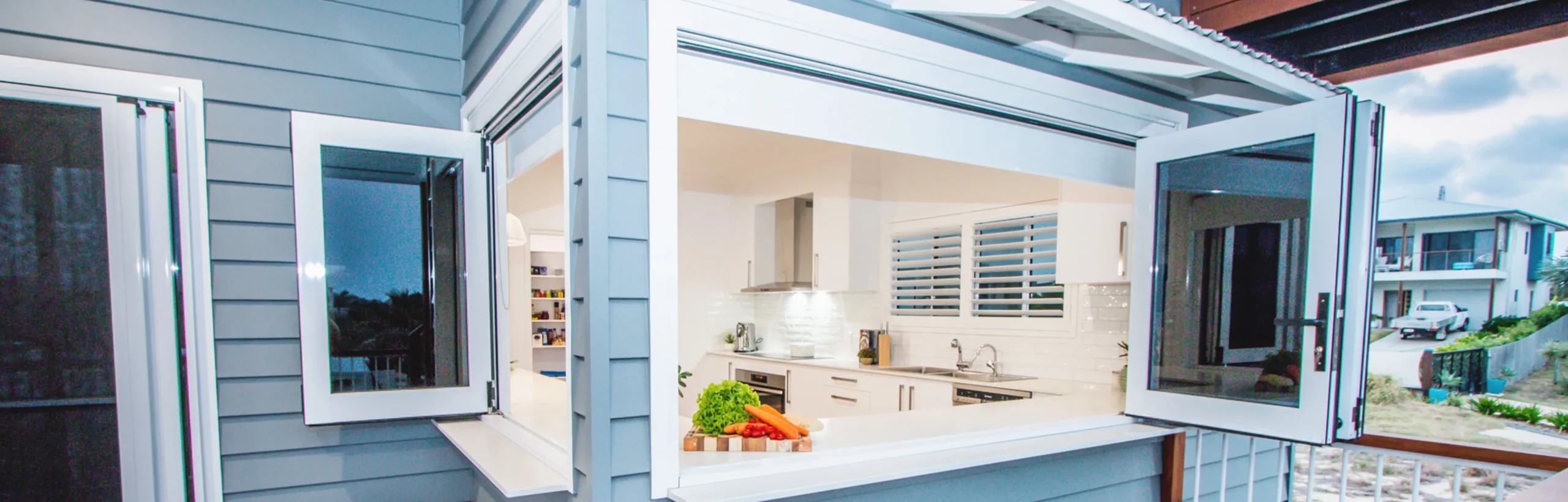

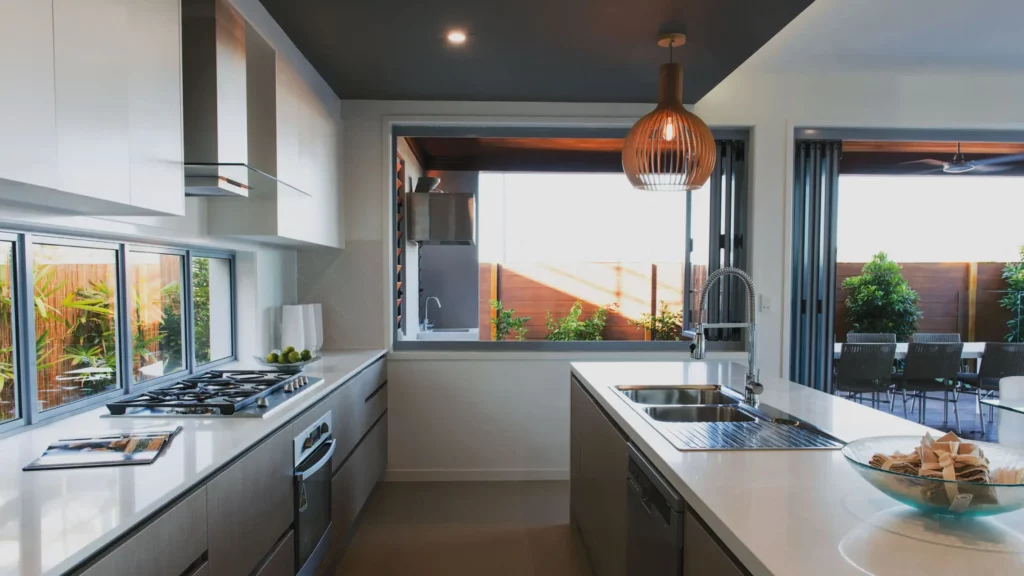

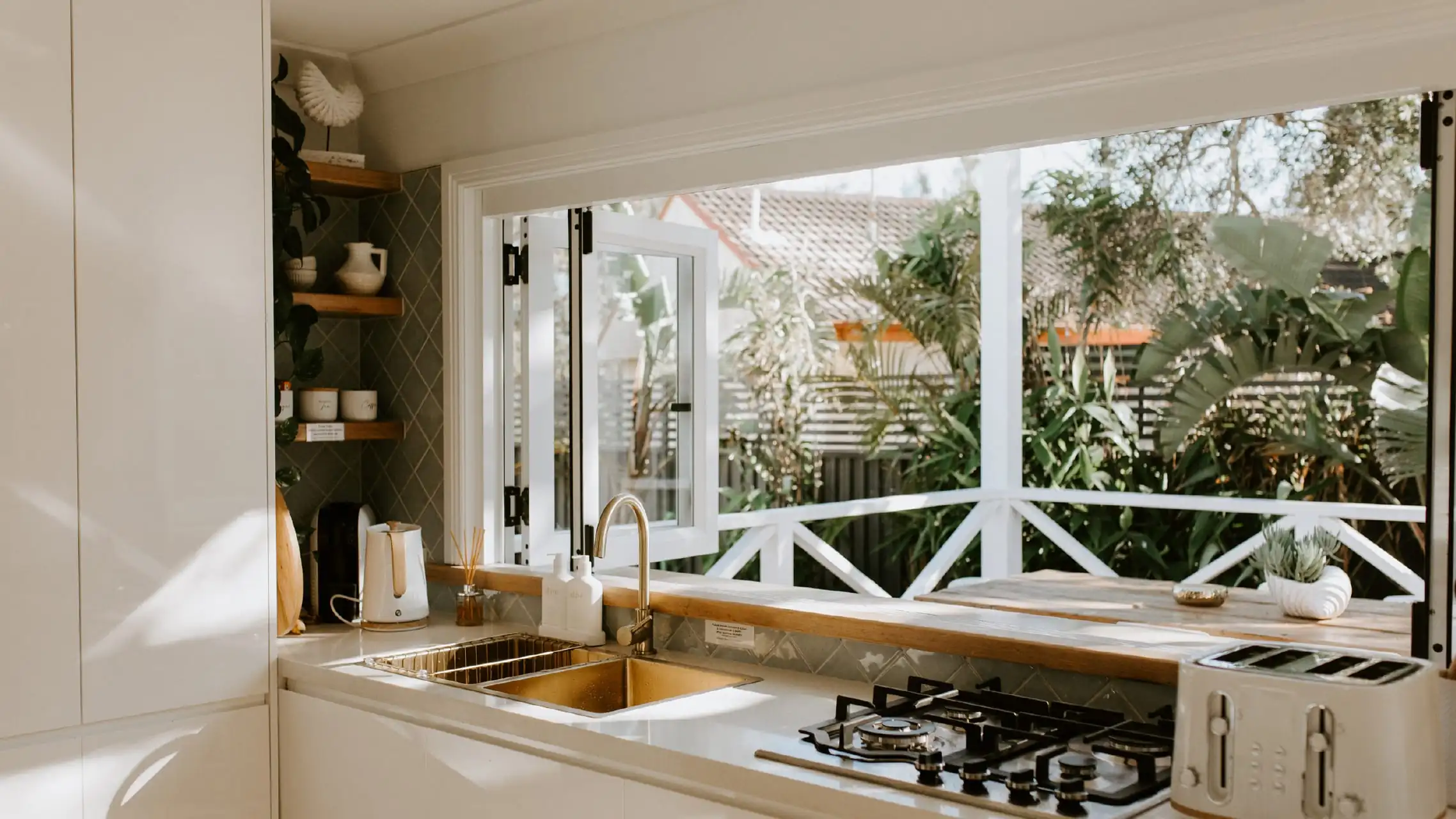

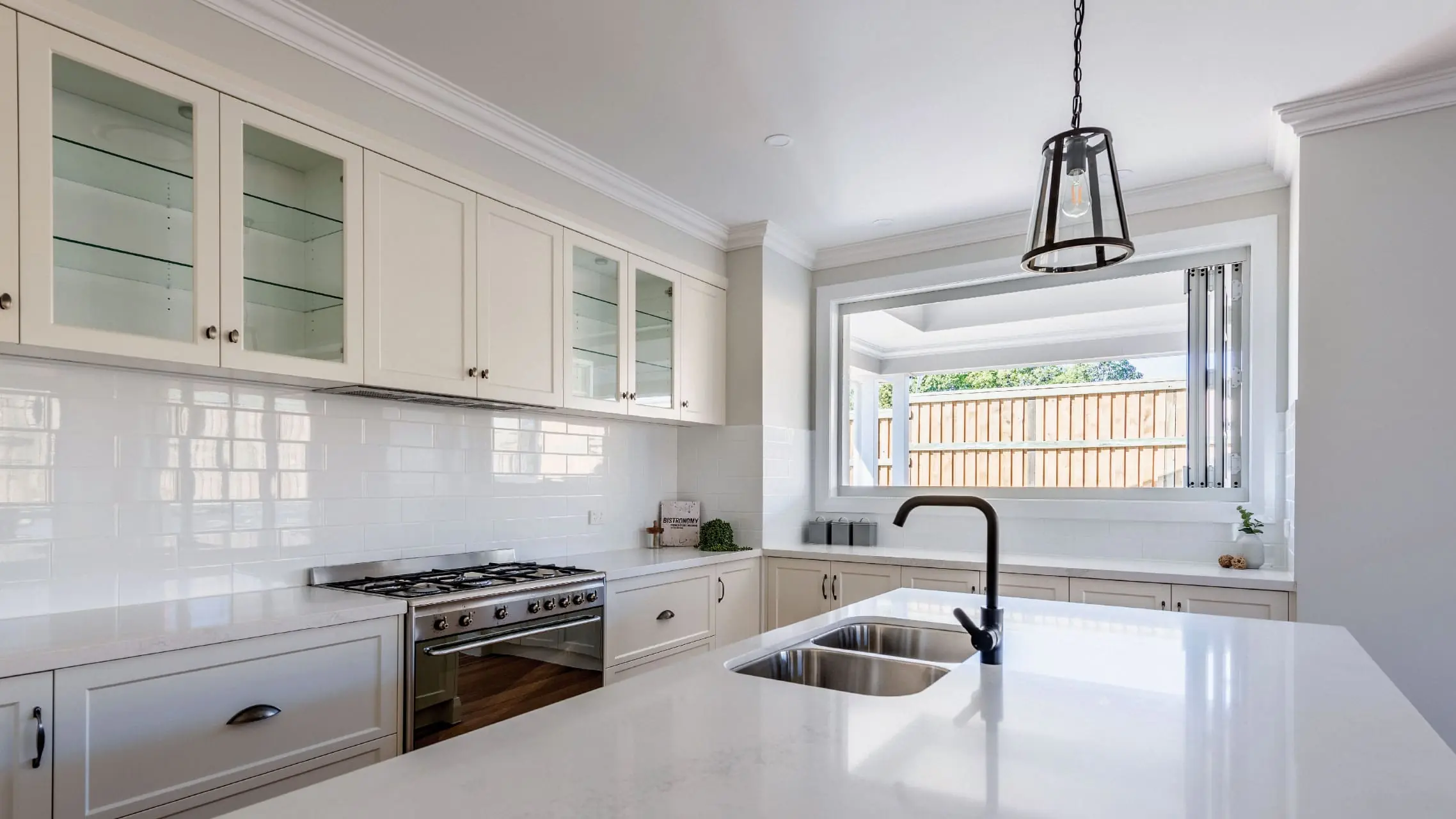

Ideal as a servery window, or simply for maximum air and light, our ‘Signature‘ bi fold windows suit many different contexts. You can choose to install your aluminium bi fold windows so that they stack to one or both sides.

Screenable
Key lockable handle for extra security
Can be keyed alike with other Aura products
Architectural symmetry with other Aura products
Double glazing options
Ventilation
Water Resistance
Energy Efficiency
Noise Reduction
Maximum Bushfire Rating
0
Compliant with Australian Standards
Frame Size
100mm
Maximum Water Rating
300Pa
Maximum Wind Rating
2200Pa ULS
Maximum Product Height
2000mm
Maximum Product Width
3610mm
Maximum Panel Width
840mm
Maximum Panel Weight
40kg
Maximum Glass Thickness (single glazed)
12.38mm
Maximum Glass Thickness (double glazed)
24mm
Lowest U-value (single glazed)
N/A
Lowest U-value (double glazed)
N/A
Maximum Acoustic Rating
Rw34

Commercial

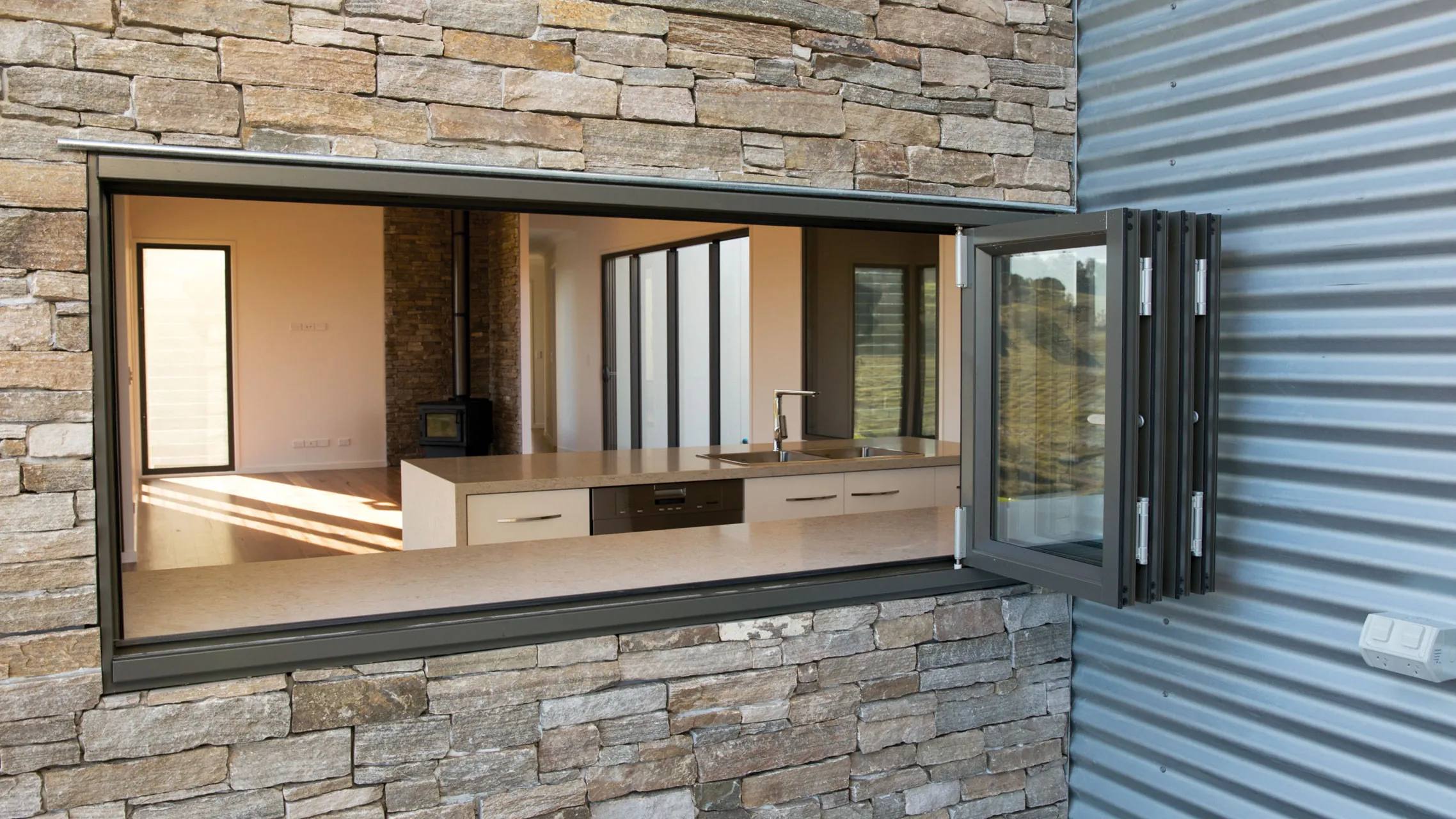

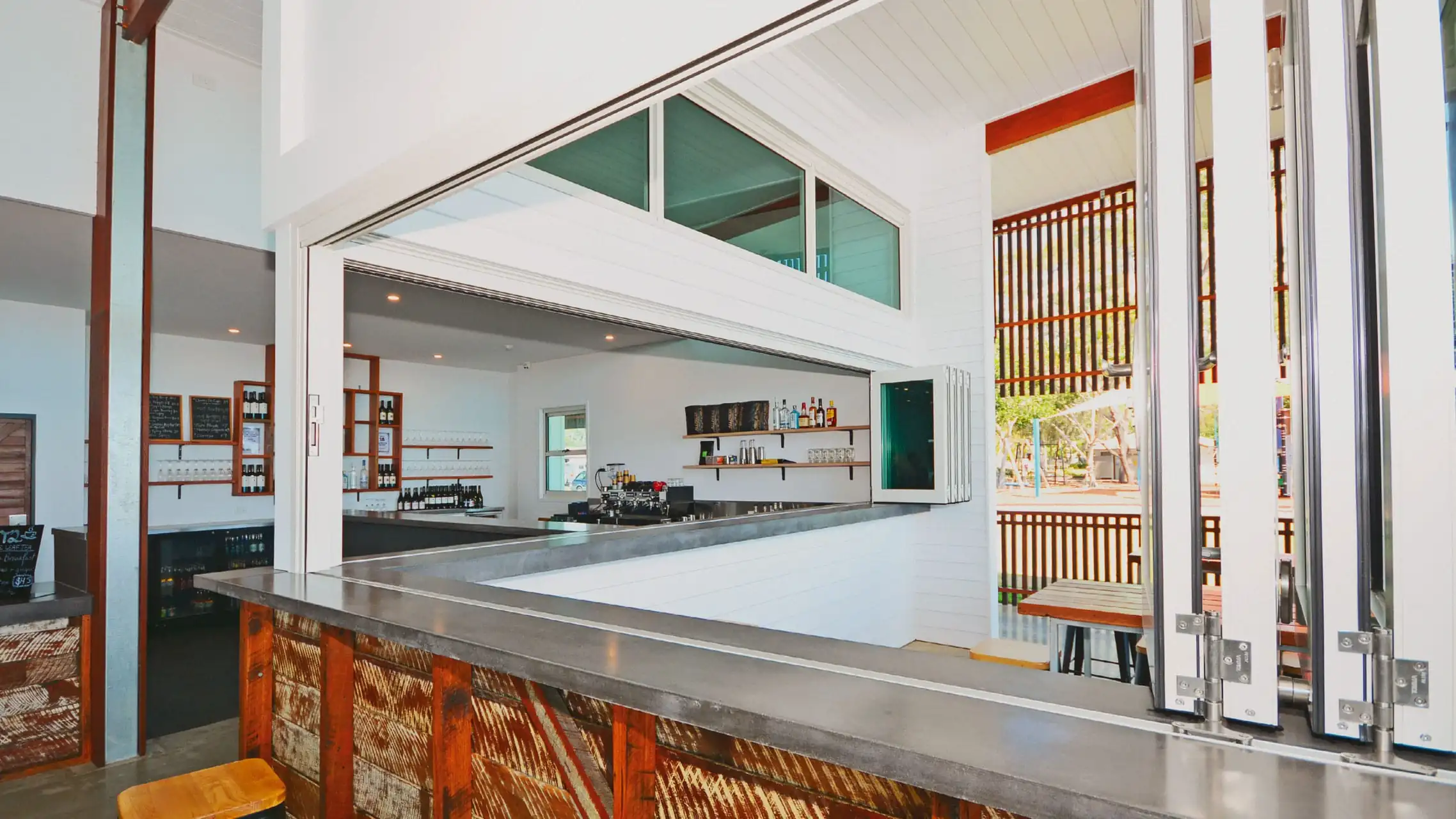

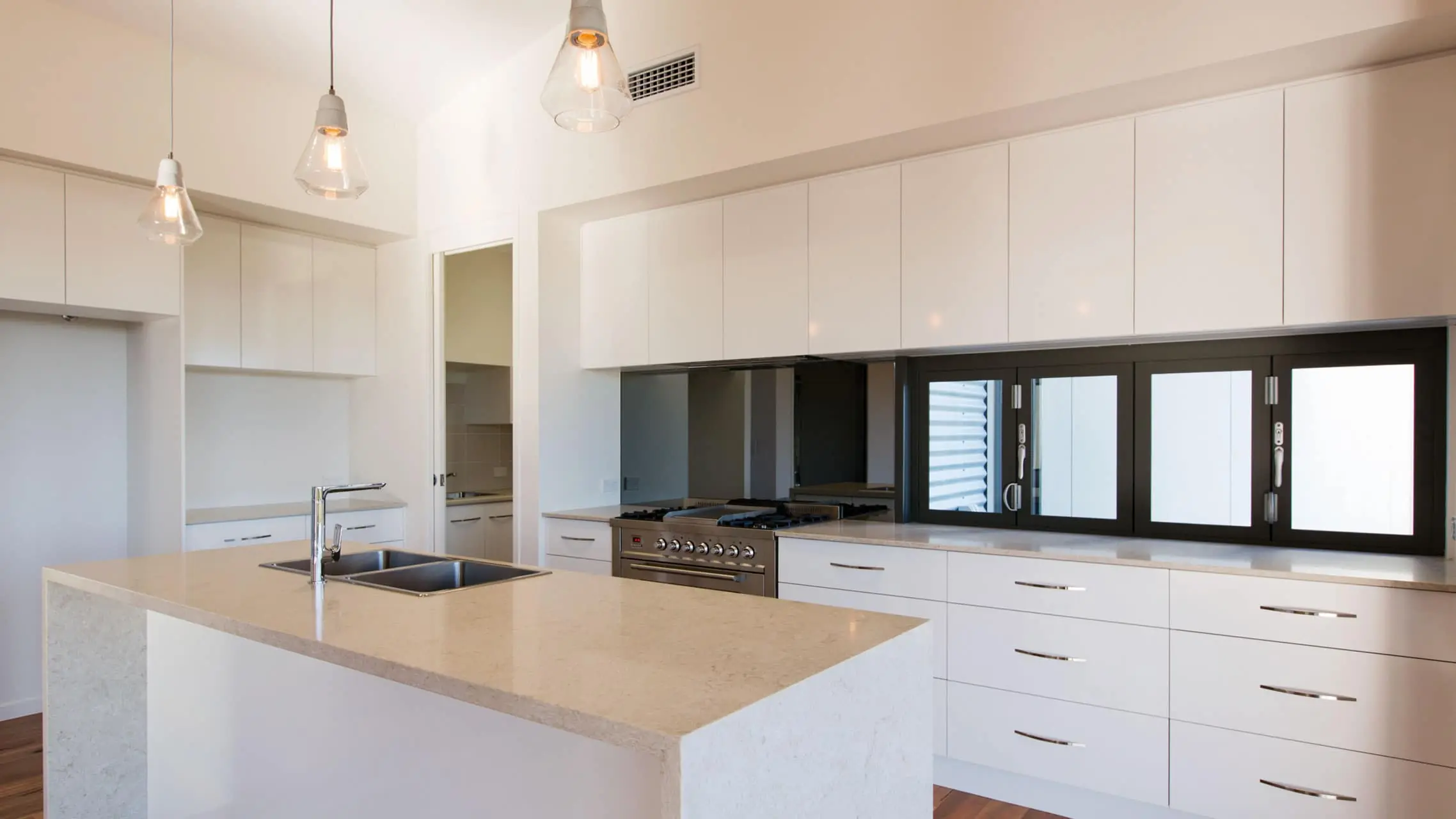

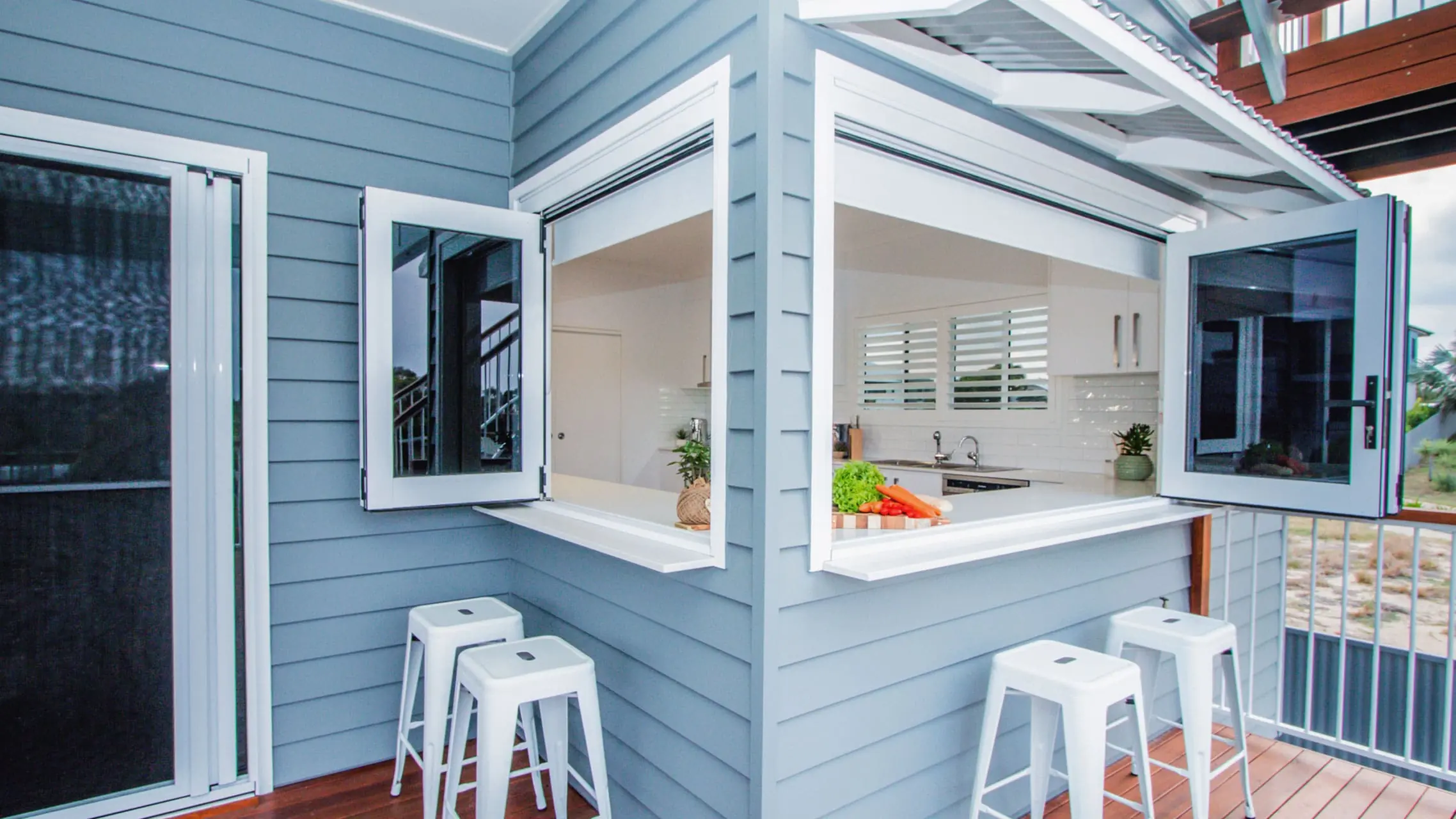

Enjoy the benefits of maximum opening space, ventilation and light with our ‘Commercial’ bi fold windows. Strong, secure and suitable for a range of contexts, they feature stainless steel hinges and a superior locking system. Feature them as a servery window, or use them as a standalone statement.

Screenable
Key lockable handle for extra security
Can be keyed alike with other Aura products
Architectural symmetry with other Aura products
Double glazing options
Ventilation
Water Resistance
Energy Efficiency
Noise Reduction
Maximum Bushfire Rating
0
Compliant with Australian Standards
Frame Size
100mm
Maximum Water Rating
300Pa
Maximum Wind Rating
2200Pa ULS
Maximum Product Height
2000mm
Maximum Product Width
8000mm
Maximum Panel Width
1000mm
Maximum Panel Weight
40kg
Maximum Glass Thickness (single glazed)
12.38mm
Maximum Glass Thickness (double glazed)
24mm
Lowest U-value (single glazed)
N/A
Lowest U-value (double glazed)
N/A
Maximum Acoustic Rating
Rw35

Frame Colours

Standard Colours
Textura® Black (GN305A)
Textura® Monument (GL329A)
Textura® Woodland Grey (GL333A)
Textura® Dune (GL325A)
Textura® Silver (GY35LA)
Textura® Surfmist (GA336A)
Textura® White (GA330A)
Decorative Colours
Textura® Basalt (GP316A)
Textura® Deep Ocean (GJ301A)
White Birch Gloss (GA057A)
Primrose Gloss (GD037A)
Stone Beige Matt (GD247A)
Shale Grey Matt (GL284A)
Hammersley Brown Satin (GM100A)

Glass Options

Clear
Grey
Green
Blue
Spotswood
Satinlite
Acid Etched
White Translucent

Other glass options are available.

Handle Options

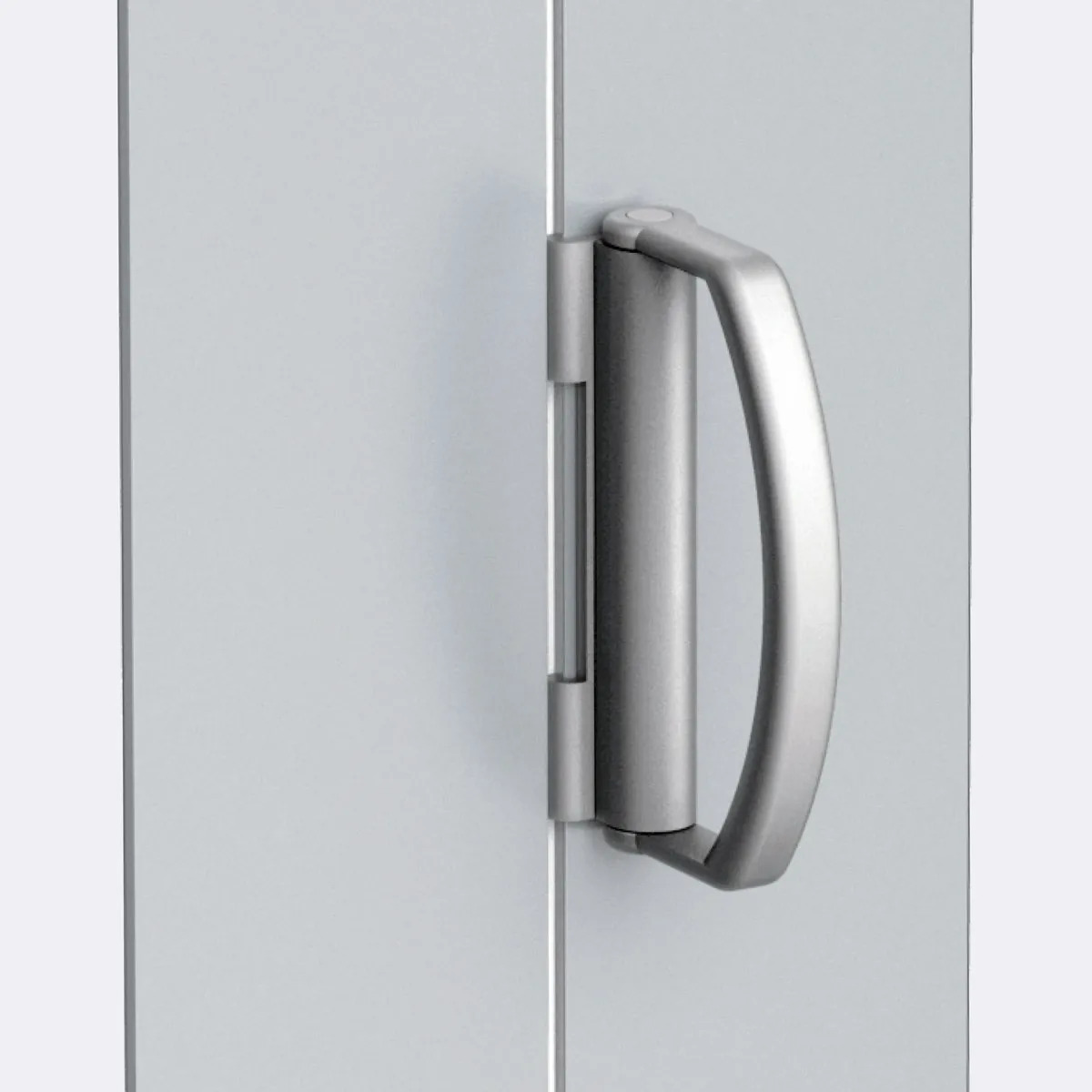

Signature Window Handle

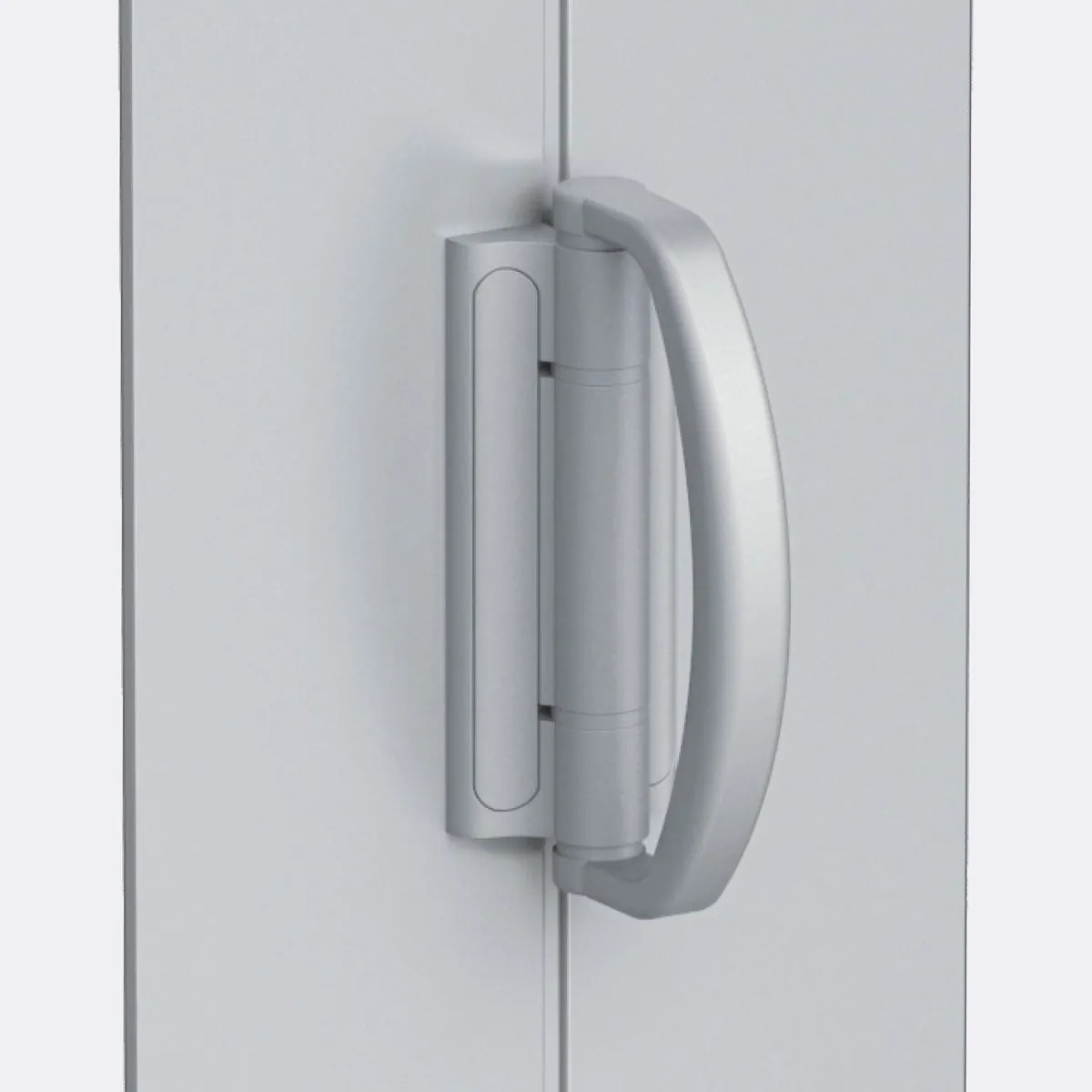

Commercial Window Handle

Handles are available in standard (black) and decorative colours.

Features

Lifestyle & Comfort

  • Ergonomic, easy to use handle
  • Can be used as a servery window
  • Wide openings invite fresh air into your home
  • Safety-first design with no exposed sharp edges

Optional

  • Can be ‘keyed alike’ with doors for convenience*

Design & Aesthetic

  • Available in a range of lifestyle configurations
  • Curtain-friendly design protects window furnishings from sharp edges

Optional

  • Create a Hamptons look with colonial bars

Performance & Reliability

  • Fully compliant with relevant Australian Standards
  • Effortless operation with high-performance, adjustable rollers
  • Superior structural integrity with 100mm frame
  • Protection against the elements with high-quality weatherstripping

Optional

  • Save on energy bills with double glazing
  • Reduce outside noise by incorporating our Sound Smart™ system
  • Improved security with our multi-point compression lock system

Premium Features

Commercial Bi fold Windows Only

  • Stainless steel hinges allow for trouble-free operation of larger panels
  • Heavy duty 50mm panels provide superior structural integrity
  • Architectural symmetry with other Aura windows and doors

Configurations & Sizes

Standard
220
440
422
660
642

Bi fold windows can only be screened by retractable screens.

View Sizes PDF

Terms & Conditions

Product availability, pricing, features, options, sizes, configurations and performance are subject to regional variations, design requirements, and building codes. Images are for illustration purposes only and may not accurately represent the product. Aura Windows & Doors reserves the right to change, alter or delete any aspect of this product without notice. We recommend visiting the Aura showroom before ordering to view colour swatches, glass samples and actual products.

Bi fold windows can only be screened by retractable screens.

*excludes patio bolts and commercial hinged & pivot doors
